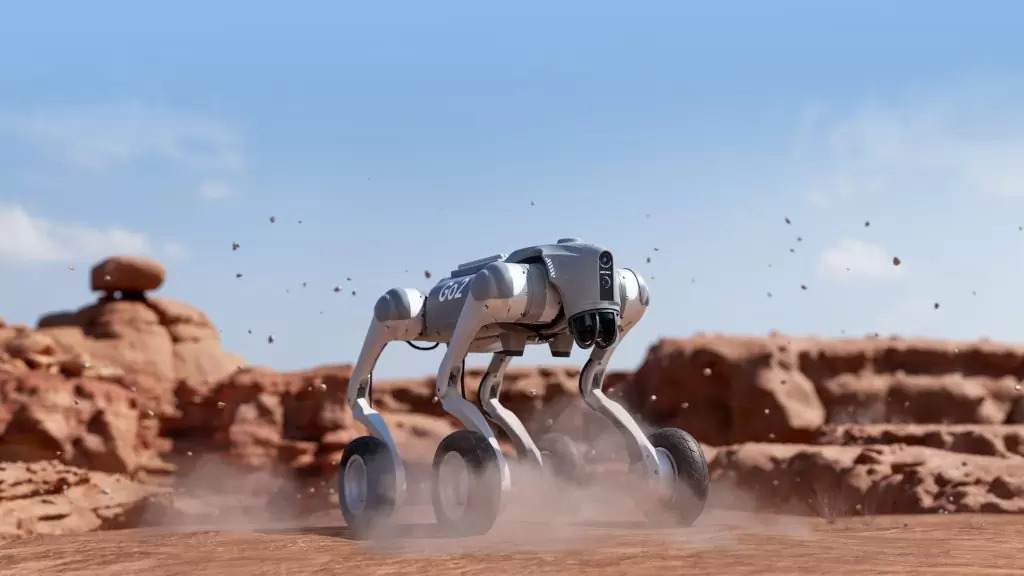

Unitree Go2-W U1: Advanced Hybrid Wheeled-Quadruped Robotic Platform
The Unitree Go2-W U1 represents a significant evolution in mobile robotics, integrating the high-speed efficiency of wheeled locomotion with the versatile terrain navigation of a quadrupedal system. Engineered for professional research, industrial inspection, and autonomous development, the U1 serves as a robust foundation for complex AI applications and real-world deployment.
Unprecedented Mobility and Terrain Adaptation
The Go2-W U1 features integrated 7-inch pneumatic tires driven by high-torque in-wheel motors. This hybrid configuration allows the platform to achieve speeds of up to 2.5 meters per second on flat surfaces while maintaining the capability to traverse obstacles, climb stairs, and negotiate inclines of up to 35 degrees. This dual-mode operation ensures optimal energy efficiency during routine patrols and superior agility when encountering environmental challenges.
The Go2-W U1 features integrated 7-inch pneumatic tires driven by high-torque in-wheel motors. This hybrid configuration allows the platform to achieve speeds of up to 2.5 meters per second on flat surfaces while maintaining the capability to traverse obstacles, climb stairs, and negotiate inclines of up to 35 degrees. This dual-mode operation ensures optimal energy efficiency during routine patrols and superior agility when encountering environmental challenges.
High-Performance Compute and Perception
Equipped with a computing module delivering 40 TOPS of AI performance, the U1 is optimized for heavy computational workloads including real-time SLAM, gesture recognition, and autonomous path planning. The onboard 4D LiDAR system provides a 360-degree by 90-degree hemispherical field of view, ensuring comprehensive situational awareness and precise obstacle avoidance in dynamic environments.
Equipped with a computing module delivering 40 TOPS of AI performance, the U1 is optimized for heavy computational workloads including real-time SLAM, gesture recognition, and autonomous path planning. The onboard 4D LiDAR system provides a 360-degree by 90-degree hemispherical field of view, ensuring comprehensive situational awareness and precise obstacle avoidance in dynamic environments.
Professional Grade Specifications
The platform is powered by a high-capacity 15,000 mAh battery, supporting extended mission runtimes of up to three hours. With a nominal payload capacity of 8 kilograms and a maximum joint torque of 45 Nm, the U1 is capable of carrying a wide array of secondary sensors, robotic arms, or specialized diagnostic equipment.
The platform is powered by a high-capacity 15,000 mAh battery, supporting extended mission runtimes of up to three hours. With a nominal payload capacity of 8 kilograms and a maximum joint torque of 45 Nm, the U1 is capable of carrying a wide array of secondary sensors, robotic arms, or specialized diagnostic equipment.
Open Architecture for Development
Designed with the developer in mind, the Go2-W U1 supports secondary development through ROS and ROS 2. It features a suite of connectivity options including Wi-Fi 6, Bluetooth 5.2, and 4G, alongside RTT 2.0 for low-latency image transmission. This open-access approach allows engineers to customize motion control algorithms and integrate proprietary software with ease.
Designed with the developer in mind, the Go2-W U1 supports secondary development through ROS and ROS 2. It features a suite of connectivity options including Wi-Fi 6, Bluetooth 5.2, and 4G, alongside RTT 2.0 for low-latency image transmission. This open-access approach allows engineers to customize motion control algorithms and integrate proprietary software with ease.
Technical Summary

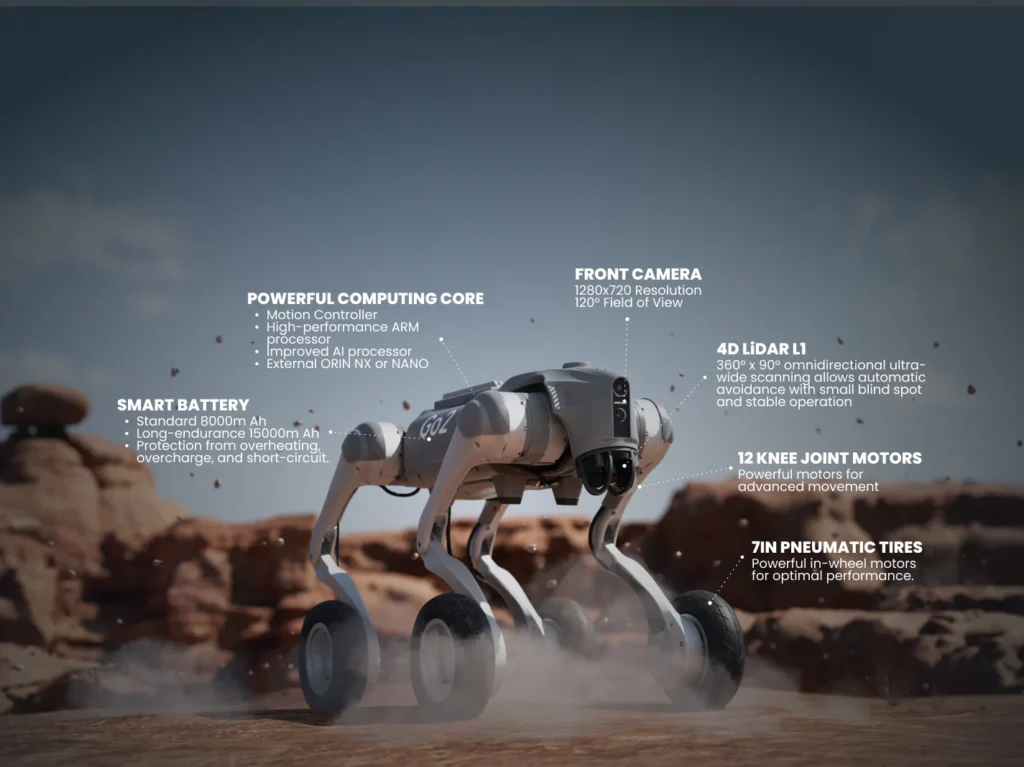

The Unitree Go2-W U1 weighs approximately 18 kilograms and measures 70 centimeters in length. It includes an HD wide-angle camera, an integrated IMU, and supports 33.6V fast charging to minimize operational downtime.
The Unitree Go2-W U1 weighs approximately 18 kilograms and measures 70 centimeters in length. It includes an HD wide-angle camera, an integrated IMU, and supports 33.6V fast charging to minimize operational downtime.
Technical Specifications
The following technical data outlines the performance capabilities and hardware integrated into the Unitree Go2-W U1 professional model.
Physical Dimensions and Weight
- Length: 700 mm
- Width: 310 mm
- Height: 400 mm
- Total Weight: Approximately 18 kg including battery
Mobility and Performance
- Maximum Speed: 2.5 meters per second
- Maximum Climb Angle: 35 degrees
- Maximum Step Height: 70 cm
- Tire Type: 7-inch pneumatic tires with integrated hub motors
- Joint Torque: 45 Nm peak torque per motor
Computing and Sensing Architecture
- AI Computing Power: 40 TOPS (Orin NX architecture)
- Primary Sensor: 3D 4D LiDAR with 360 degree by 90 degree hemispherical coverage
- Visual System: HD wide-angle camera with real-time video transmission
- Navigation Sensors: Integrated IMU and point cloud recognition
Battery and Connectivity
- Battery Capacity: 15,000 mAh
- Operational Runtime: 1.5 to 3 hours depending on payload and terrain
- Charging: 33.6V fast-charge support
- Wireless Protocols: Wi-Fi 6, Bluetooth 5.2, and 4G LTE
- Development Support: ROS and ROS 2 compatible
Payload and Integration
- Rated Payload: 8 kg
- Maximum Payload: 12 kg
- Expansion Ports: Support for secondary sensors, robotic arms, and specialized hardware
Target Industries for the Unitree Go2-W U1
The Unitree Go2-W U1 is engineered for sectors requiring a balance of high-speed transit and complex terrain navigation. Its hybrid wheeled-leg design makes it an ideal solution for the following professional environments:
Industrial Inspection and Facility Management
In large-scale warehouses, power plants, and manufacturing facilities, the Go2-W U1 performs automated patrols. The wheeled mode allows for rapid movement across flat factory floors, while the quadrupedal legs enable it to climb stairs and clear thresholds that stop traditional wheeled robots.
In large-scale warehouses, power plants, and manufacturing facilities, the Go2-W U1 performs automated patrols. The wheeled mode allows for rapid movement across flat factory floors, while the quadrupedal legs enable it to climb stairs and clear thresholds that stop traditional wheeled robots.
Search and Rescue and First Response
The U1 serves as a remote reconnaissance tool in environments too hazardous for human personnel. Its 4D LiDAR and HD camera provide real-time situational awareness in disaster zones, allowing teams to scout stable paths or locate individuals without risking human lives.
The U1 serves as a remote reconnaissance tool in environments too hazardous for human personnel. Its 4D LiDAR and HD camera provide real-time situational awareness in disaster zones, allowing teams to scout stable paths or locate individuals without risking human lives.
Academic Research and AI Development
As a robust development platform, the U1 is a primary choice for university laboratories and private R&D firms. It provides the necessary computing power and sensor suite to test advanced algorithms in Simultaneous Localization and Mapping (SLAM), gait optimization, and autonomous navigation.
As a robust development platform, the U1 is a primary choice for university laboratories and private R&D firms. It provides the necessary computing power and sensor suite to test advanced algorithms in Simultaneous Localization and Mapping (SLAM), gait optimization, and autonomous navigation.
Last-Mile Delivery and Logistics
The hybrid mobility system offers a unique advantage for urban logistics. The Go2-W U1 can travel quickly along sidewalks using its wheels and then transition to its legs to navigate curbs or steps to reach a customer’s doorway, streamlining the final stage of the delivery process.
The hybrid mobility system offers a unique advantage for urban logistics. The Go2-W U1 can travel quickly along sidewalks using its wheels and then transition to its legs to navigate curbs or steps to reach a customer’s doorway, streamlining the final stage of the delivery process.
Unitree Go2-W U1 vs. Go2-W U2 Comparison
The following table outlines the technical distinctions between the U1 and U2 models of the Unitree Go2-W. While both platforms share the same hybrid wheeled-quadruped chassis, the U2 offers significant upgrades in processing power and integrated hardware for high-demand industrial applications.
| Feature | Unitree Go2-W U1 | Unitree Go2-W U2 |
|---|---|---|
| Computing Power | 40 TOPS (Standard AI) | 100+ TOPS (High-Performance AI) |
| Gimbal System | Not Included | Integrated 2-Axis Gimbal |
| Lighting | Standard LED | High-Intensity Searchlight |
| Voice Interface | Standard Audio | Advanced Voice Command System |
| Primary Use Case | Research & Development | Industrial Inspection & Security |
| Remote Communication | Wi-Fi 6 / BT 5.2 / 4G | Enhanced 4G / Optional 5G |
| Navigation Sensors | 4D Ultra-Wide LiDAR | 4D Ultra-Wide LiDAR |
| Max Speed | 2.5 m/s | 2.5 m/s |
Strategic Advantages of the U1 Model
The Go2-W U1 is positioned as the optimal choice for organizations focused on algorithm development and cost-efficient scaling. While the U2 provides more “out-of-the-box” hardware for field operations (such as the gimbal and searchlight), the U1 offers the same mechanical agility and core sensor suite at a more accessible price point. This makes the U1 the preferred platform for laboratories and developers who intend to integrate their own custom sensors or proprietary vision systems.
Maintenance and Technical Support Protocols
The Unitree Go2-W U1 is built for durability in professional environments. To ensure peak performance and longevity, the following maintenance and support guidelines are recommended for all operators.
Routine Hardware Maintenance
- Pneumatic Tire Inspection: Regularly check the 7-inch pneumatic tires for proper inflation and surface wear. Maintaining consistent pressure ensures optimal speed and energy efficiency in wheeled mode.
- Joint and Linkage Care: Inspect the 12 high-performance motors and joints for debris or obstruction. The legs should be kept clean of dust and moisture to prevent friction and ensure a full range of motion.
- Sensor Calibration: Periodically clean the 4D LiDAR lens and HD camera using non-abrasive optical cleaners. Calibrate the IMU through the Unitree development interface if navigation drift is detected.
- Battery Management: To maximize the lifespan of the 15,000 mAh battery, avoid deep discharge cycles and store the unit in a cool, dry environment when not in use for extended periods.
Software and Firmware Updates
- Over-the-Air (OTA) Updates: The U1 supports remote firmware updates to improve motion control stability, battery management, and sensor accuracy.
- Development Support: Comprehensive documentation is provided for ROS and ROS 2 integration. Developers have access to the Unitree SDK for low-level control and high-level API calls.
- Technical Community: Owners gain access to the global Unitree developer community, offering a repository of shared scripts, troubleshooting guides, and peer-to-peer technical assistance.
Professional Support Services
- Manufacturer Warranty: The Go2-W U1 includes a standard limited warranty covering manufacturing defects in the motors, sensors, and main control board.
- Technical Consultation: Professional users can access dedicated technical support for hardware integration, such as mounting specialized sensors or secondary robotic arms to the 8 kg payload interface.
- Replacement Parts: A full catalog of modular replacement parts, including leg segments, motors, and protective shells, is available to minimize operational downtime in the event of hardware damage.
FAQs
Q. What is the primary difference between the Go2-W U1 and the standard Go2 quadruped?
The Go2-W U1 features a hybrid drive system with 7-inch pneumatic tires integrated into its feet. While the standard Go2 relies solely on leg gait, the U1 can switch to wheeled mode for significantly higher energy efficiency and smoother transit on flat surfaces.
Q. How does the robot handle transitions between wheels and legs?
The transition is seamless and automated via the control software. The U1 uses its wheels for high-speed travel on level ground and automatically engages its 12-high-torque joints to step over obstacles, climb stairs, or navigate uneven terrain when sensors detect a change in surface height.
Q. Can the Go2-W U1 be used outdoors in wet conditions?
The Go2-W series is designed with professional-grade sealing for standard outdoor environments. However, it is recommended to avoid heavy rain or submerged conditions to protect the 4D LiDAR and HD camera systems. Routine cleaning is advised after use in dusty or damp terrain.
Q. What programming languages and platforms are supported for development?
The U1 is fully compatible with ROS and ROS 2. Developers can interface with the robot using C++ or Python via the Unitree SDK. This allows for custom programming of motion gait, autonomous navigation, and specialized sensor data processing.
Q. Is the battery user-replaceable?
Yes, the 15,000 mAh battery is designed for quick replacement to minimize downtime during long-duration missions. Users can purchase additional battery units and use the 33.6V fast charger for continuous operational cycles.
Q. What is the maximum payload the U1 can carry while maintaining stability?
The recommended professional payload for optimal balance and motor longevity is 8 kg. While the hardware can support a maximum of 12 kg, exceeding the 8 kg limit may impact the robot’s agility and battery runtime.
Q. How does the 40 TOPS computing power benefit industrial users?
The 40 TOPS (Tera Operations Per Second) provided by the Orin NX architecture allows the U1 to process complex visual data and LiDAR point clouds locally. This enables real-time obstacle avoidance and autonomous decision-making without the need for a constant high-bandwidth connection to an external server.
