CHASING Waterproof Screen Remote Controller

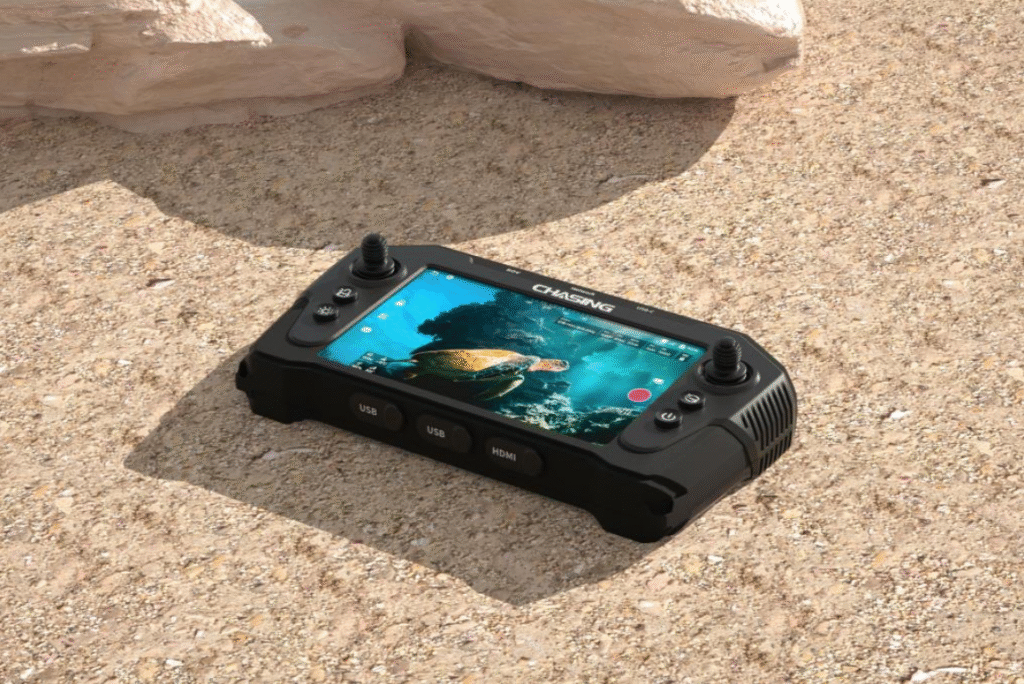

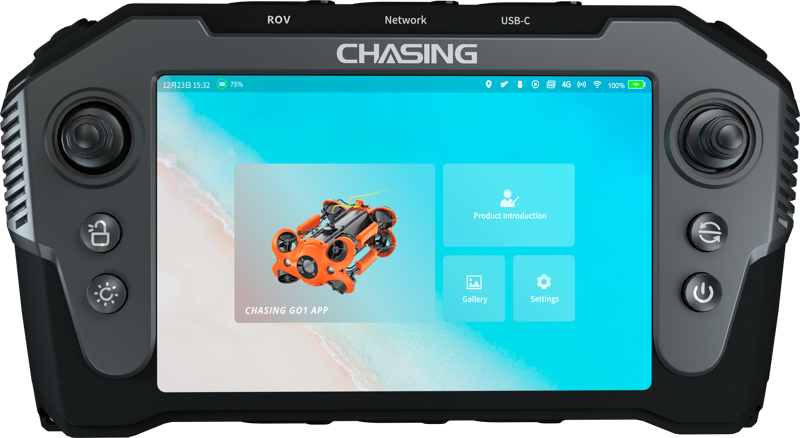

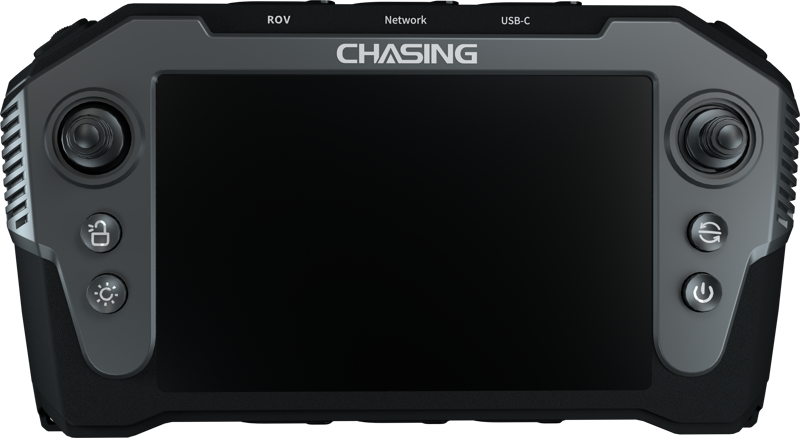

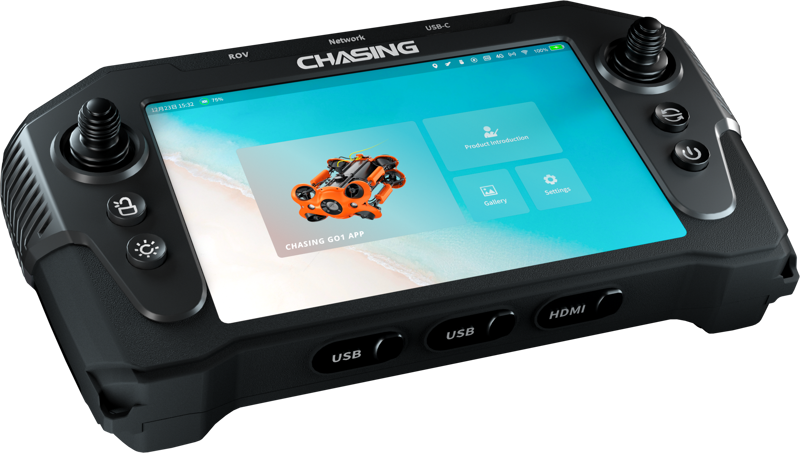

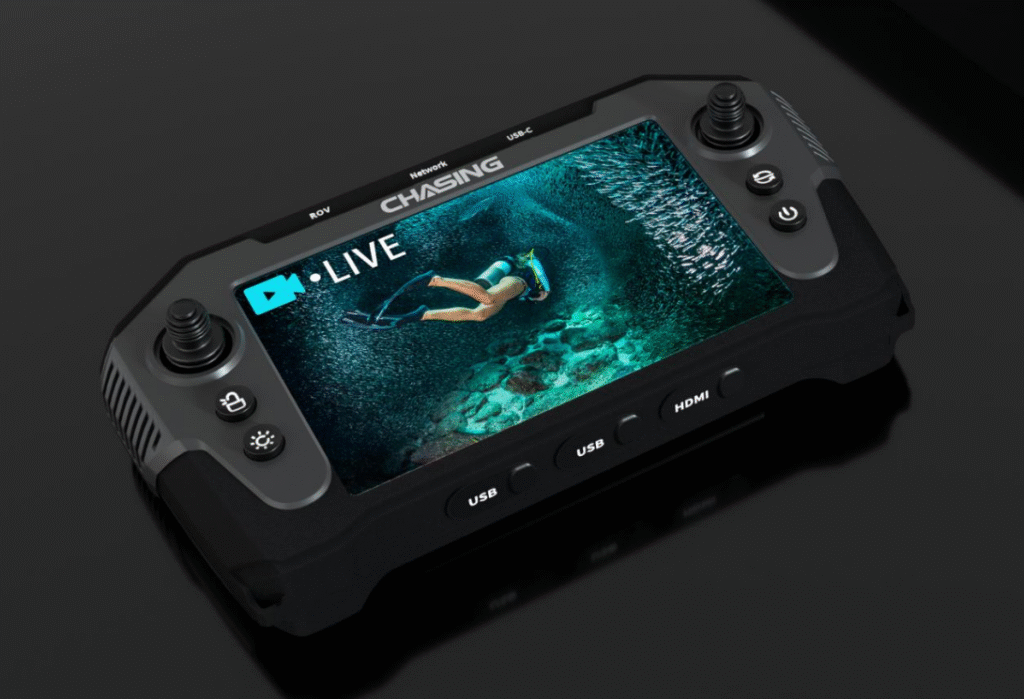

The Chasing WSRC Remote Controller is a professional-grade device designed to enhance the operation of CHASING underwater drones, including M2, M2 PRO, and M2 PRO MAX. Featuring a 7-inch high-brightness touchscreen with 700 cd/m², it ensures clear visibility even in direct sunlight, making it reliable for field missions and outdoor operations. Its ergonomic design and precise joysticks provide smooth, intuitive control, ensuring accurate navigation during complex underwater tasks.
Built with an IP65 waterproof rating, the Chasing WSRC is resistant to seawater splashes and light to moderate rain, delivering durability and confidence in demanding marine environments. Its rugged construction guarantees long-term performance, even in industrial or research applications. Operators can rely on this device to withstand harsh weather while maintaining seamless drone control.
Connectivity is another key strength of the Chasing WSRC. With USB 2.0, USB-C, Ethernet, HDMI, and ROV ports, it supports multiple connections for versatile operational needs. The six shortcut keys and spring-based joysticks provide fast access to essential functions, improving efficiency during time-sensitive missions like rescue, recovery, or marine inspection.
Powered by a 7000 mAh lithium battery, the WSRC offers up to 5 hours of continuous operation. Lightweight and portable, it is an ideal companion for researchers, professionals, and field operators who need a reliable, easy-to-use, and high-performance controller for underwater exploration.

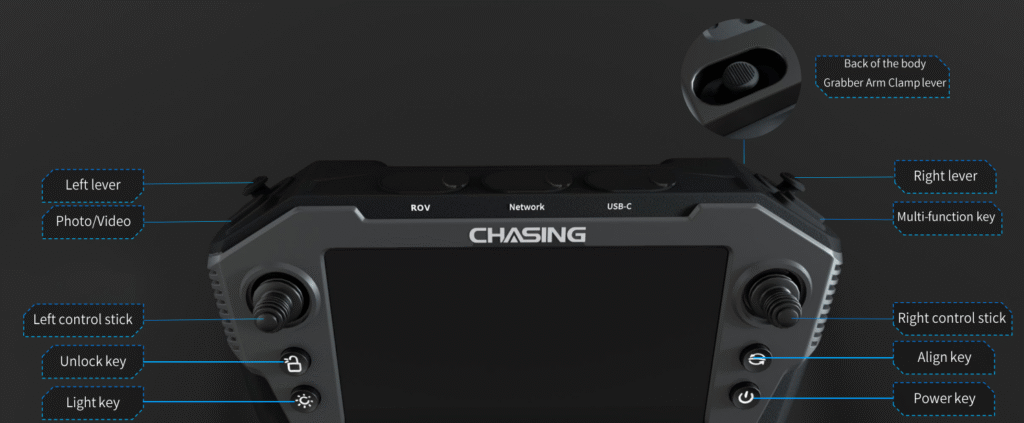

Multiple Uncomplicated Shortcut Keys to Achieve Human-computer Integration
Uncomplicated Shortcut Keys – CHASING WSRC comes with 6 easy-to-use shortcut keys for quick operation.
Spring-Based Joysticks – Equipped with new spring-based control sticks for smoother, more precise handling.
Flexible Floodlight Adjustment – Screen-side keys and wavy wheel allow easy floodlight brightness control.
Seamless Mode Switching – Quickly switch between photo and video modes with shortcut actions.
Multi-Functional Key – Lets users switch the right lever to control ROV rolling or the grabber arm.
Human-Machine Integration – Designed for smooth, intuitive underwater operations with enhanced responsiveness.
.
Versatile 6-Port Connectivity – Seamlessly supports multiple functions to meet diverse operational needs.

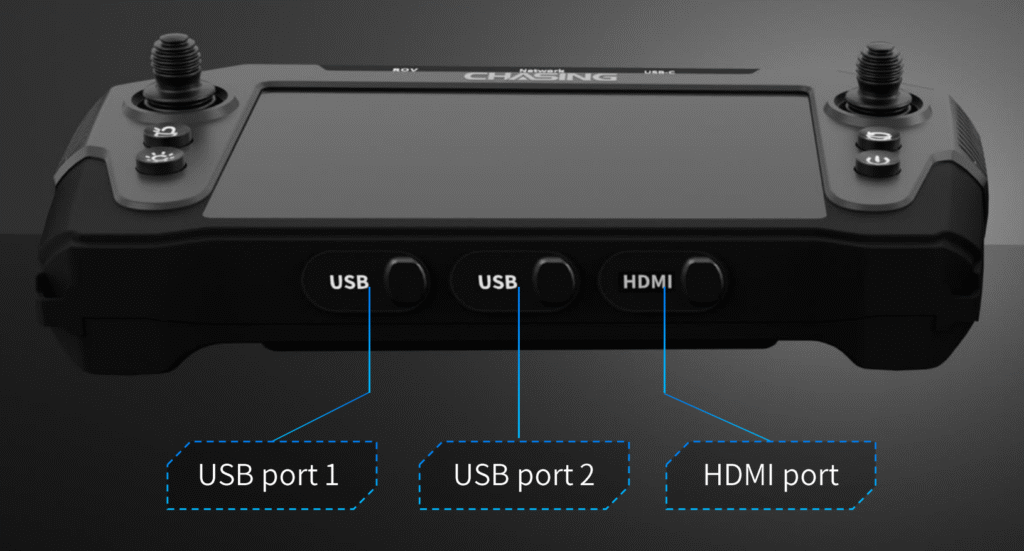

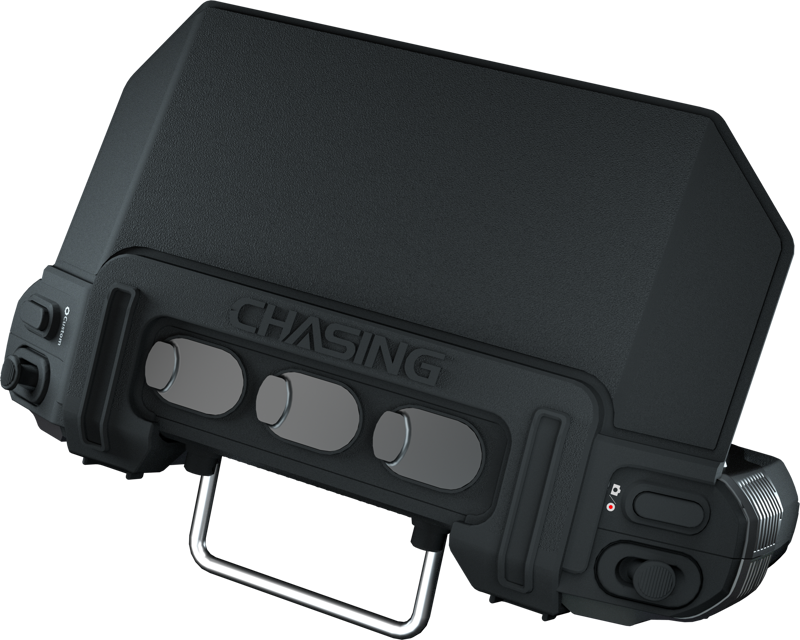

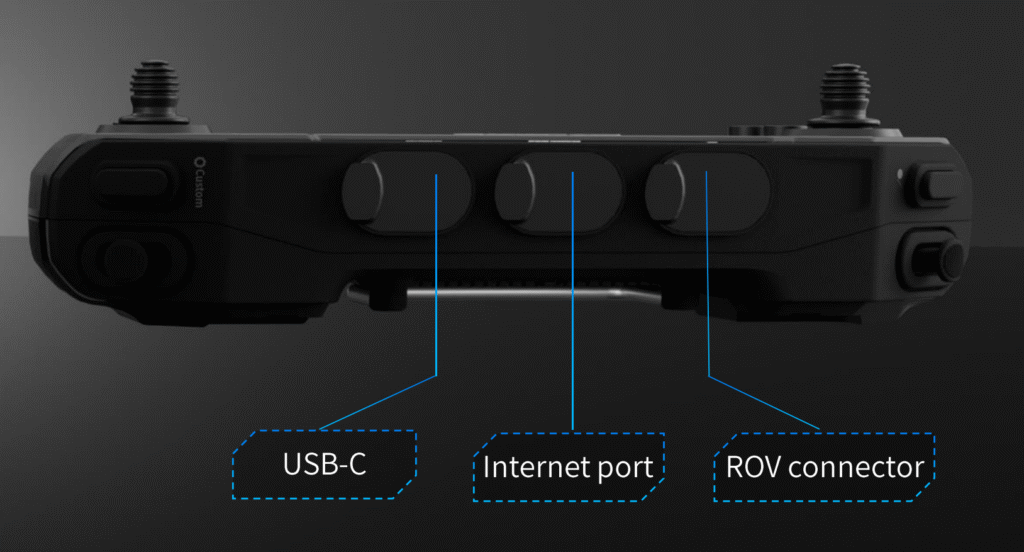

The CHASING WSRC goes beyond the standard ROV connection port, offering a wide range of connectivity options for professional use. It includes a network port that allows direct cable connections or pairing with a second remote controller in “Observer Mode.”
Additionally, it features a USB-C port for charging, two USB ports for flash drives or mobile phone data transfer, and an HDMI port to connect external display screens. This versatile setup ensures seamless operation across different missions and environments.

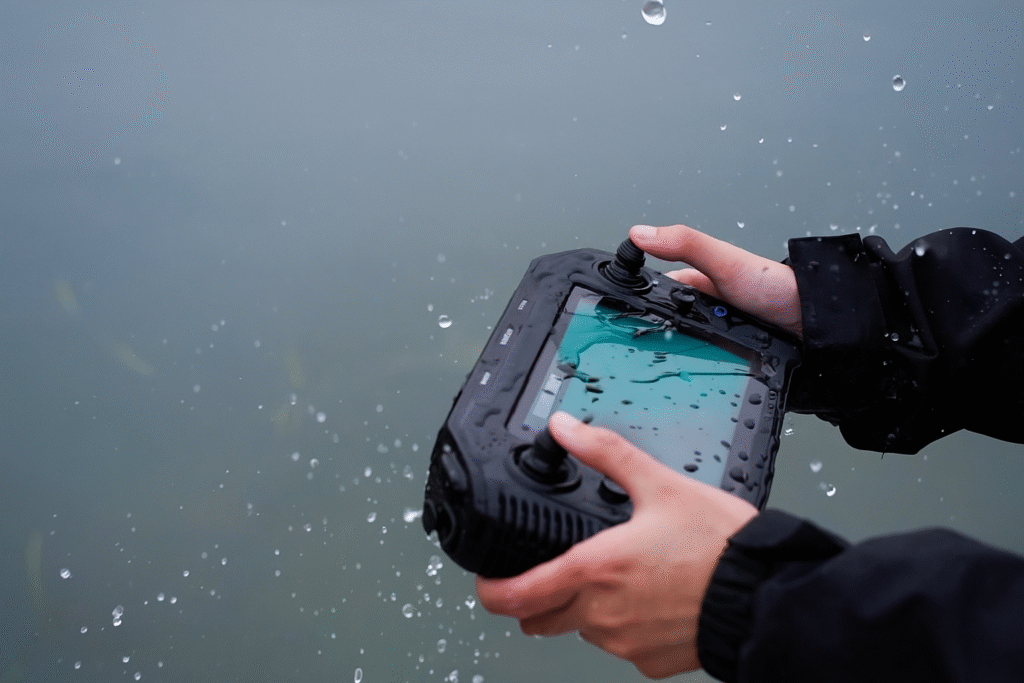

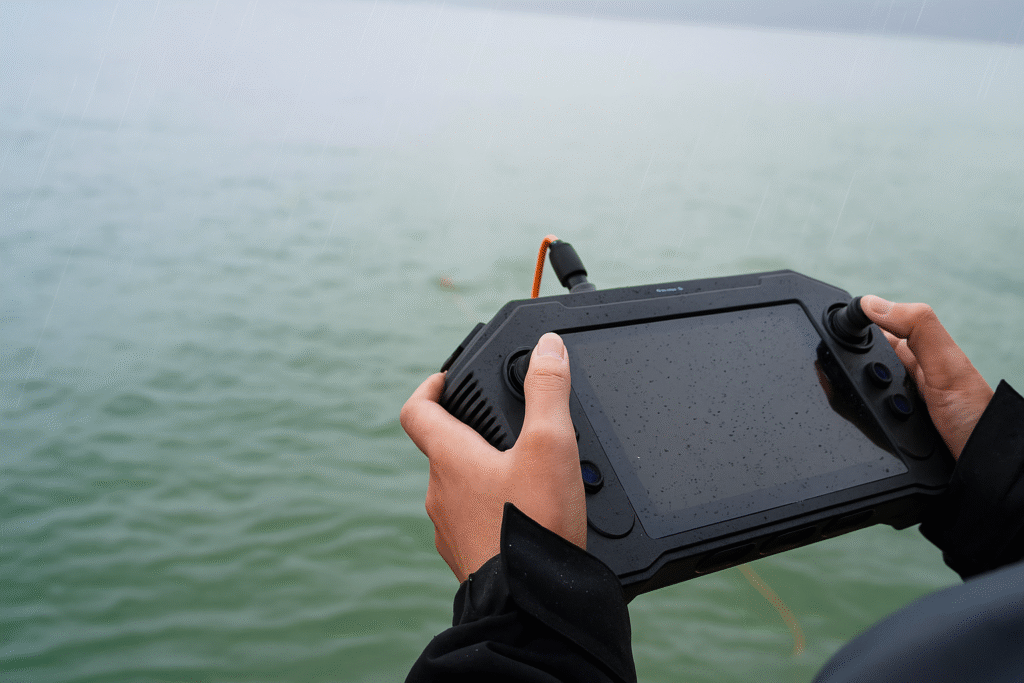

IP65 Waterproof Rating – Operational in rain and resistant to seawater splashes.
- IP65 Waterproof Rating – Durable and reliable in light to moderate rain.
- Seawater Splash Resistant – Withstands splashes caused by waves with ease.

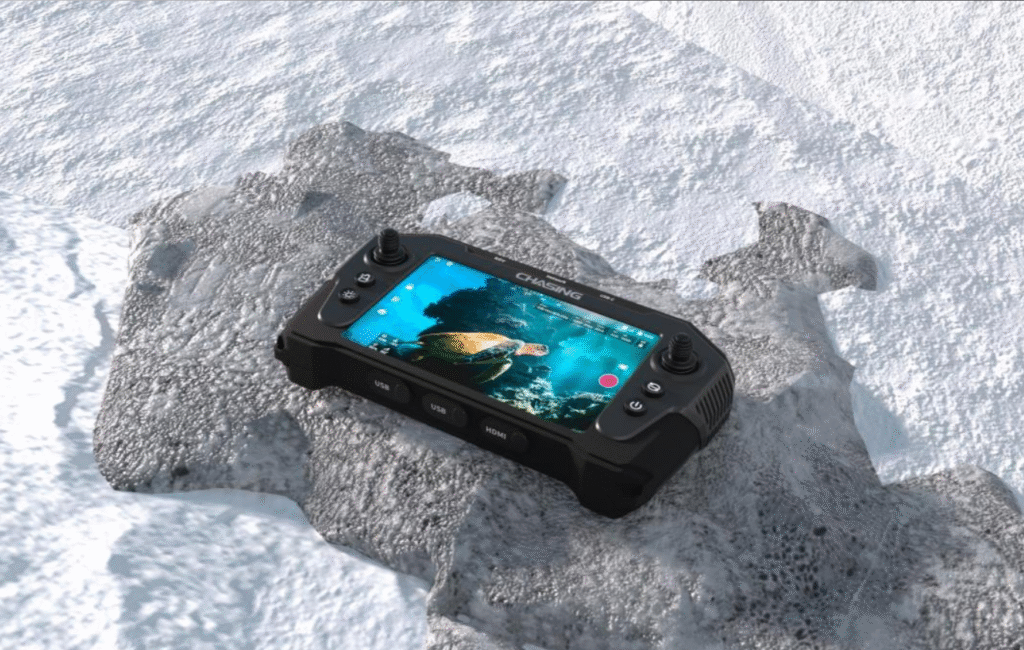

Extreme temperature endurance
CHASING WSRC maintains stable performance at-10C to 55C environment.
3 Modes of Connection, Multiple Entertainment Functions
- Multiple Connection Modes – Supports Wi-Fi, external mobile network card, and wired network.
- Stable Signal – Remains unaffected by complex surroundings, ensuring smooth operation.
- Data Security – Keeps transmitted data confidential and reliable.
- Dual Functionality – Works as both a professional controller and a tablet.
- Entertainment Ready – Can be used for listening to music and watching movies.
- CHASING GO1 App Integration – Enables live streaming of underwater footage.
- Easy Sharing – Send saved content via email, social media, or work software.
- Task Efficiency – Designed to handle both professional tasks and leisure needs.

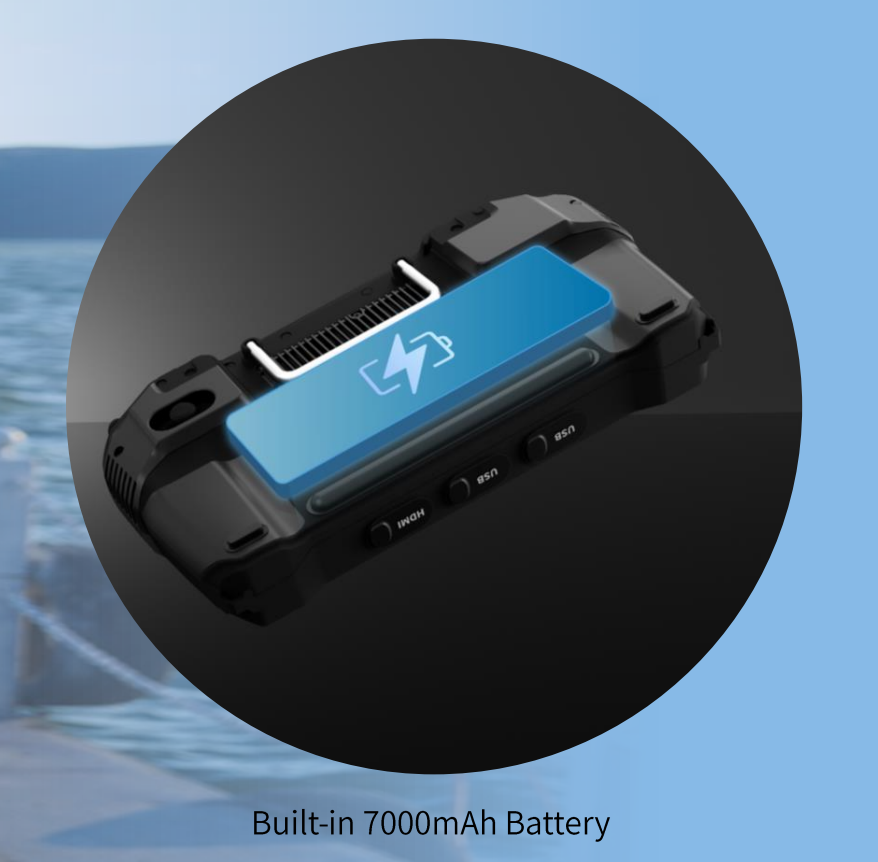

Ultra-long Battery life
Basic Parameter
| Feature | Specification |
|---|---|

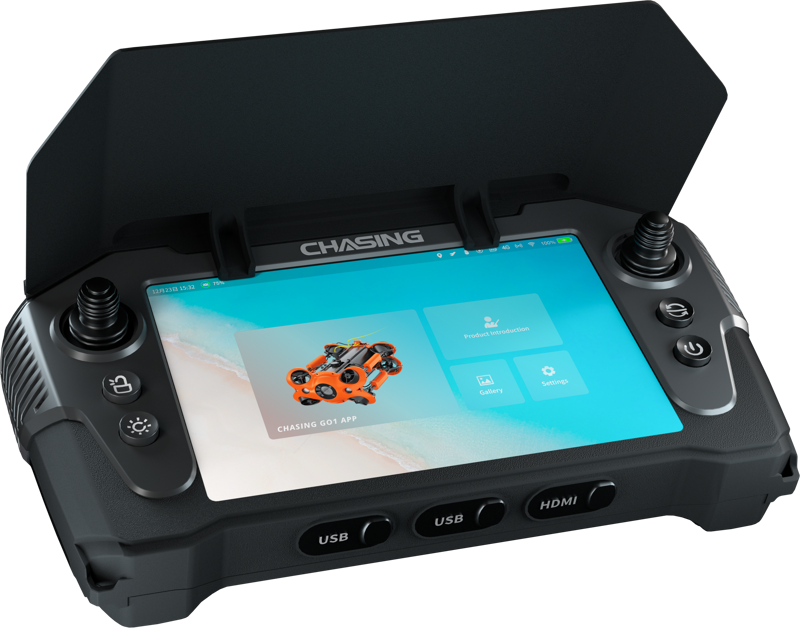

| Appearance and Dimension | 292×156×79mm (without light shield) |
| Total weight | 1.3kg |
| Display screen | 7.02 inch, 700cd/m², 1920×1200 |
| Touch screen | 5-point industrial touch |
| I/O interface | USB2.0×2, ethernet port, USB-C, HDMI, ROV port |
| Remote-control lever, key type and quantity | Single-shaft lever ×3, dual-shaft hall control stick ×2, key switch ×6 |
| Applicable adapter specification | Output: 5.0V=3.0A 15.0V/9V=3A/15V=3A/20.0V=3.25A |
Performance Parameters
| Feature | Specification |
|---|---|
| CPU | Quad-core 64-bit Cortex-A55 with a dominant frequency of 2.0GHz |
| GPU | ARM G52 2EE supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1, with embedded high-performance 2D acceleration hardware |
| Multimedia | Support 4K 60fps H.265/H.264/VP9 video decoding, Support 1080P 60fps H.265/H.264 video encoding |
| Operating System | Android 11 |
| Running memory | 4G |
| Storage capacity | 32G |
Battery Performance
| Feature | Specification |
|---|---|
| Battery capacity | 7000mAh, 11.1V |
| Type | Non-removable lithium battery |
| Battery life | ≥6h |
| Charging time | ≈3.5h |
Wireless Communication
| Feature | Specification |
|---|---|
| Wi-Fi | Frequency 2.4GHz/5.8GHz |
| Bluetooth | Bluetooth 4.2 |
| External mobile network card | Support |
| Satellite positioning | GPS |
Product Reliability
| Feature | Specification |
|---|---|
| Operating temperature | -10°C~55°C (14°F-131°F) |
| Operating humidity | 5% – 95% relative humidity, non-condensing |
| Protective property | IP65 |
FAQ's
What connection modes does the CHASING WSRC support?
The CHASING WSRC supports three connection modes: Wi-Fi, external mobile network card, and wired network.
Can the CHASING WSRC work in areas with weak or complex signals?
Yes, it is designed to operate smoothly without interference, even in complex signal surroundings.
Is the data transmitted through the CHASING WSRC secure?
Absolutely, the controller ensures confidential and reliable data transmission.
Can the CHASING WSRC be used for entertainment purposes?
Yes, besides professional operations, it can function as a tablet for listening to music, watching movies, and more.
Does the CHASING WSRC support live streaming?
Yes, using the CHASING GO1 app, you can live-stream underwater footage in real time.
How can I share saved content from the CHASING WSRC?
You can send locally stored content via email, social networks, and work software.
Is the CHASING WSRC only for drone control?
No, while it’s optimized for CHASING drones, it also offers multi-functional tablet-like use.
Which app is needed to access live-stream and sharing features?
The CHASING GO1 app enables live streaming and content sharing directly from the controller.
What makes the CHASING WSRC different from a normal remote controller?
It combines professional-grade underwater drone control with entertainment and communication features, making it versatile for work and leisure.
