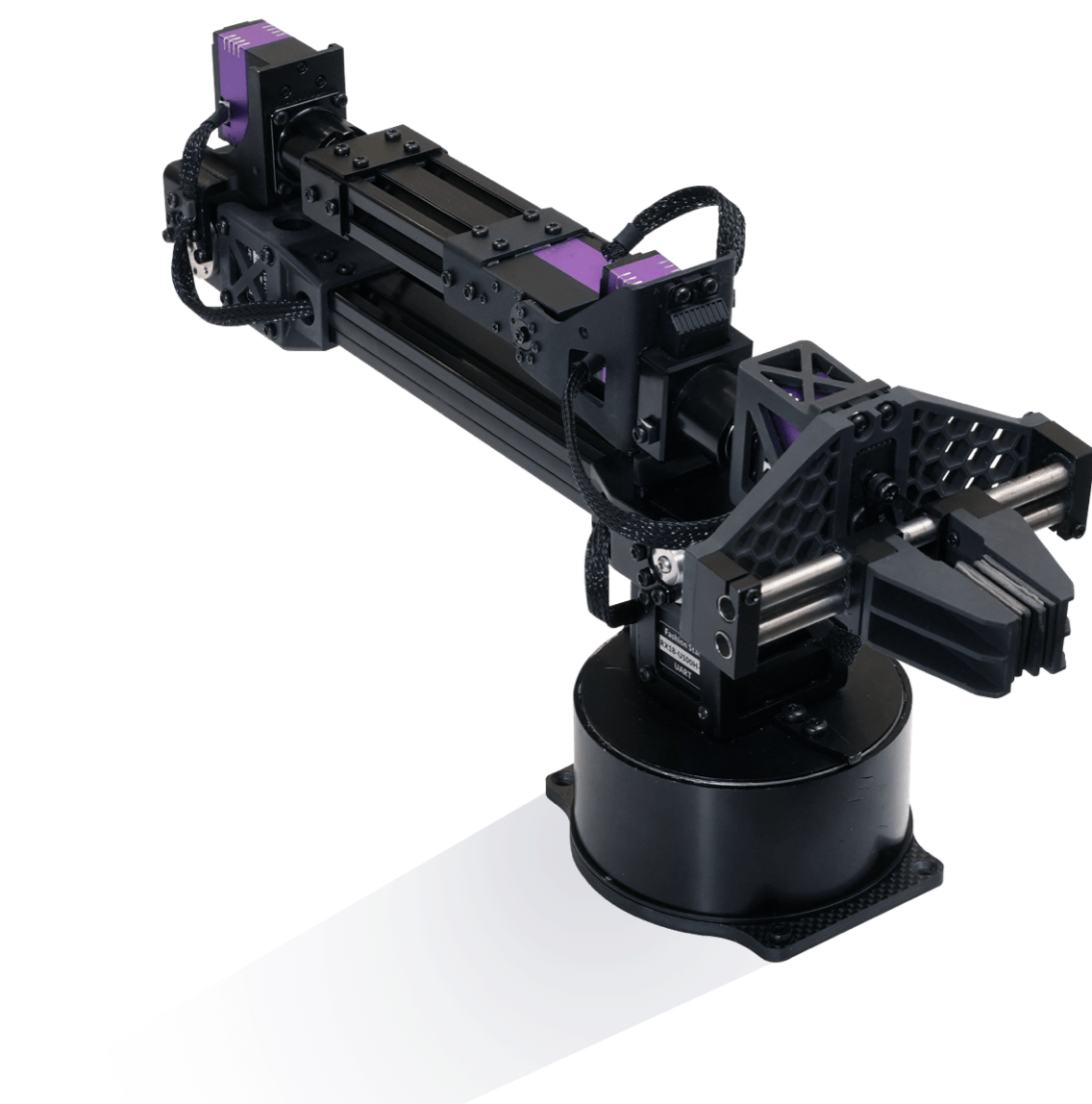

Robotics Arm D1 for Unitree Go2 Edu
The Robotics Arm D1 is a lightweight 6-axis robotic manipulator designed specifically for the Unitree Go2 Edu quadruped robot. It enables the robot to perform object handling, pick-and-place operations, inspection tasks, and AI-based manipulation, making it suitable for research, education, and automation projects.
With a recommended payload of 500g, the arm provides stable performance for handling lightweight tools, sensors, and everyday objects. Its 600mm working reach allows the robot to interact with items beyond its immediate position, while the extended reach of 715mm including the gripper increases operational flexibility.
The arm features six independently controlled joints, allowing smooth movement across multiple directions for accurate positioning and manipulation. Its wide joint rotation angles help perform complex tasks in confined or dynamic environments.
Powered by 24V DC and controlled through an RJ45 Ethernet interface, the D1 Robotics Arm integrates seamlessly with the Go2 Edu platform. This combination makes it an excellent solution for developers building AI applications, autonomous robots, and intelligent manipulation systems.
Key Features and Capabilities
Six Degrees of Freedom
The robotic arm features 6 independently controlled joints, allowing smooth and flexible movement for complex manipulation tasks.
Extended Working Reach
With a 600mm operating reach and 715mm reach including the gripper, the arm can access objects across a larger working area.
Lightweight Payload Handling
Designed to carry up to 500g, making it ideal for research tools, sensors, cameras, and lightweight objects.
Ethernet-Based Control
The integrated RJ45 communication interface provides reliable and responsive robot arm control.
Built for Go2 Edu
Designed specifically for the Unitree Go2 Edu robot, ensuring simple integration and stable operation.
Ideal for AI Development
Supports robotics programming, autonomous manipulation, computer vision, and intelligent control applications
Applications
- Robotic object manipulation
- Pick-and-place automation
- AI robotics research
- Computer vision projects
- Robotics education
- Autonomous mobile manipulation
- University robotics laboratories
- Research and development
- Industrial inspection
- Smart automation projects
Why Choose D1 Robotics Arm?
- Purpose-built for the Unitree Go2 Edu platform.
- Six-axis movement enables precise robotic manipulation.
- Lightweight design minimizes impact on robot mobility.
- Ethernet communication allows reliable control.
- Suitable for education, AI research, and automation.
- Easy to integrate into custom robotics projects.
Development & Research Capabilities
- Robotic arm control development
- AI manipulation algorithms
- Motion planning research
- Autonomous grasping experiments
- Human-robot interaction
- Computer vision integration
- Mobile manipulation research
- ROS and custom robotics software development
Technical Specifications
| Feature | Specification |
|---|---|
| Product Model | D1 Robotics Arm |
| Compatible Platform | Unitree Go2 Edu |
| Degrees of Freedom | 6 |
| Recommended Payload | 500g |
| Maximum Reach | 600mm |
| Maximum Reach (Including Gripper) | 715mm |
| Power Input | 24V DC, 2.5A (Max 5A) |
| Power Consumption | 60W |
| Power Interface | DC 5.5 × 2.1 |
| Control Interface | RJ45 (Ethernet) |
| Joint Rotation Range | J1: ±135°, J2: ±90°, J3: ±90°, J4: ±135°, J5: ±90°, J6: ±135° |
FAQs
Can the D1 Robotics Arm be installed on all Go2 models?
It is designed specifically for the Unitree Go2 Edu platform.
What is the recommended payload of the D1 Robotics Arm?
The recommended payload is 500g for stable and reliable operation.
Does the robotic arm support custom software development?
Yes. It can be integrated into custom robotics and AI development projects.
What communication interface does the arm use?
The arm is controlled through an RJ45 Ethernet communication interface.
What kind of tasks can the D1 Robotics Arm perform?
It can perform object picking, placement, inspection, manipulation, and research applications.
Can the arm be used with computer vision systems?
Yes. It works well alongside AI vision and object recognition systems for intelligent manipulation.
