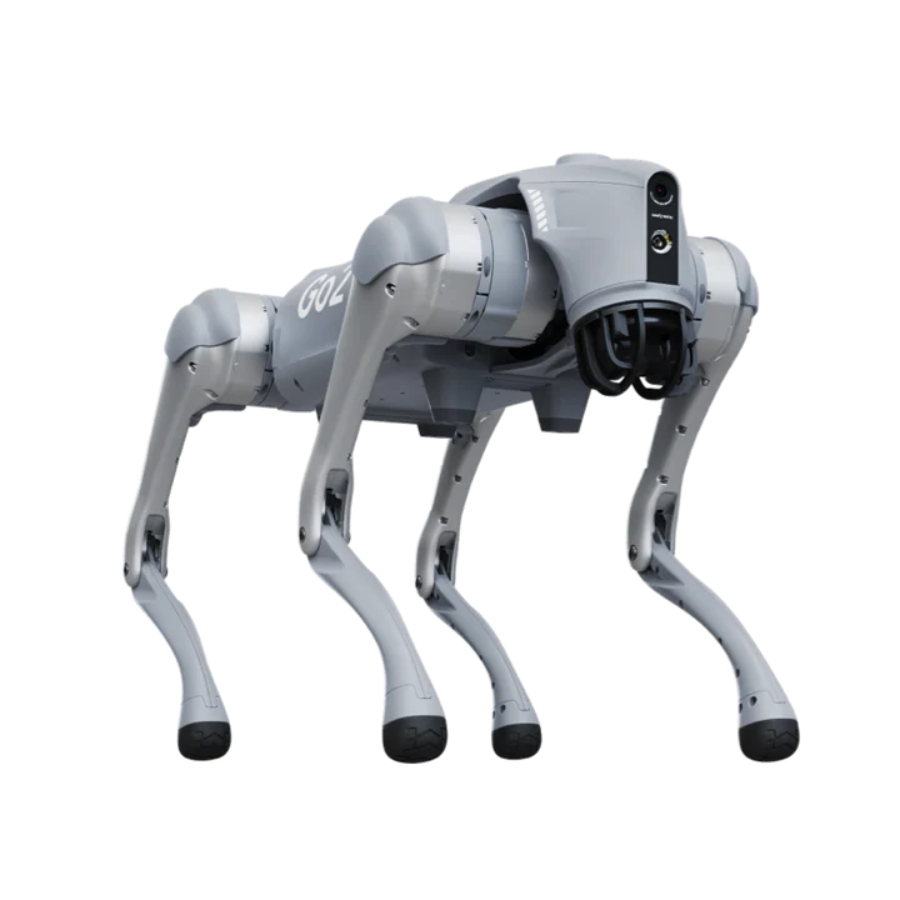

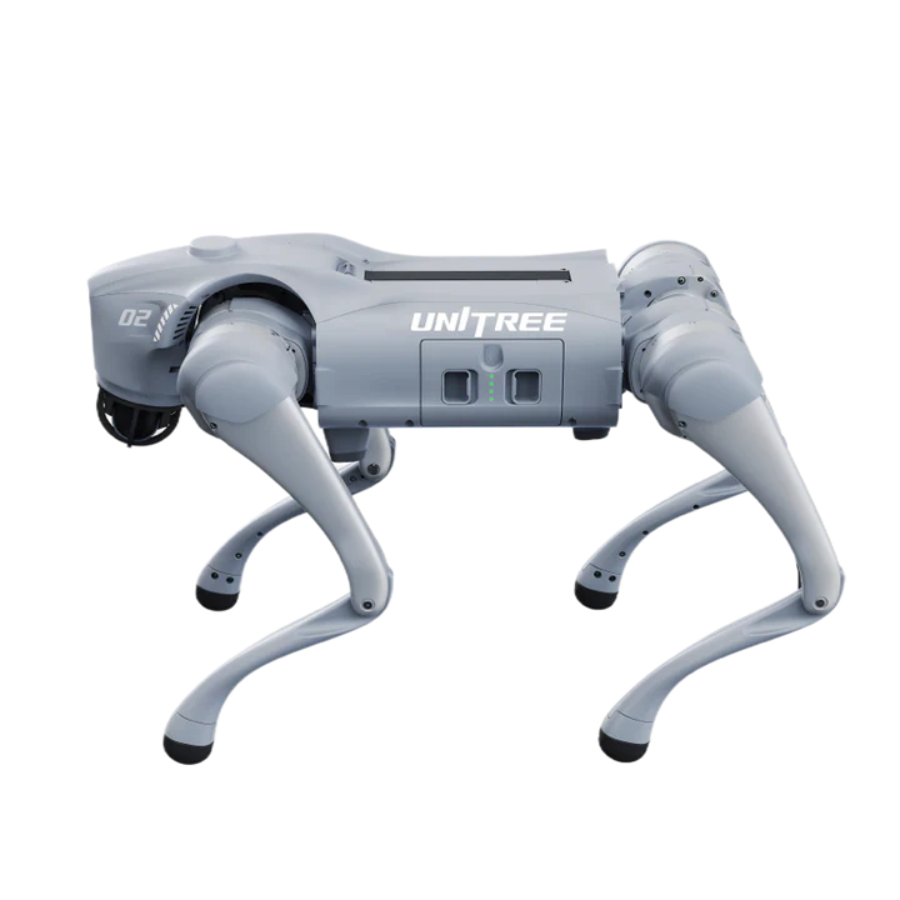

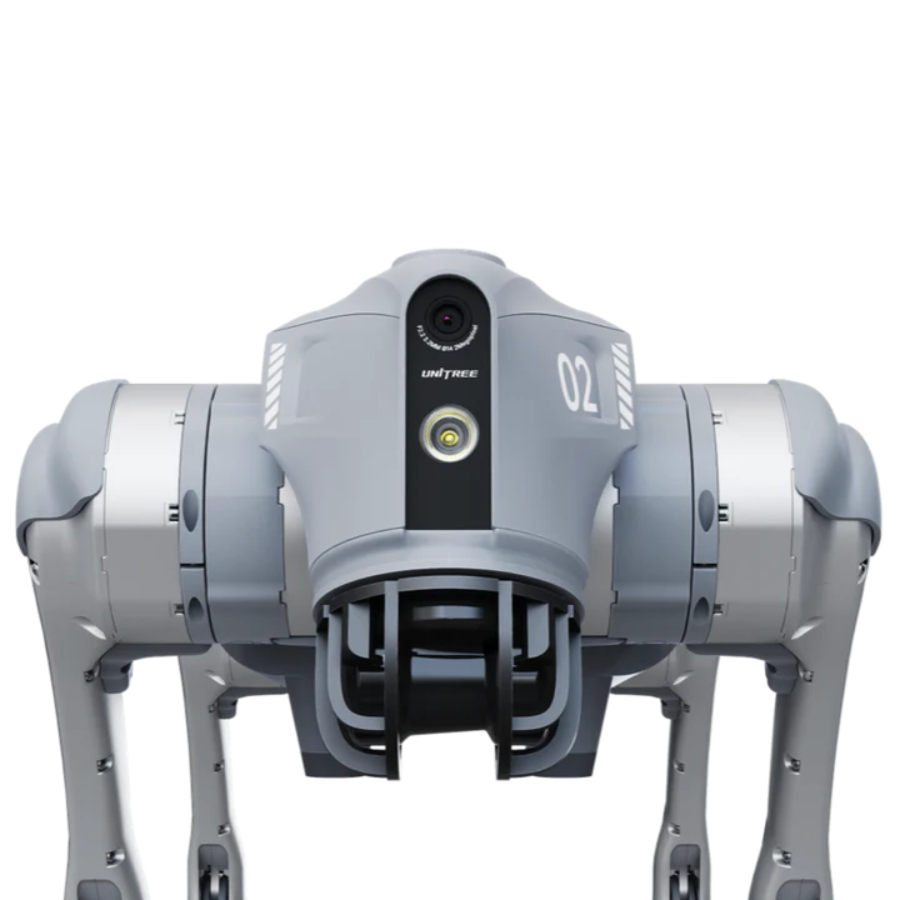

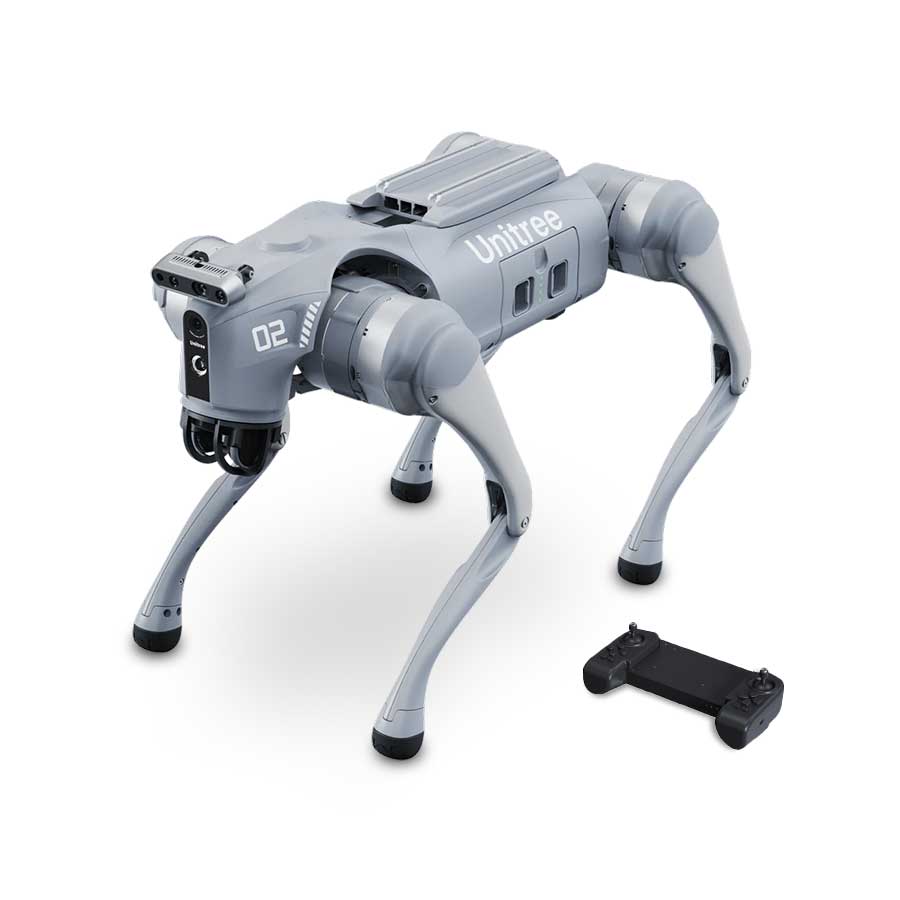

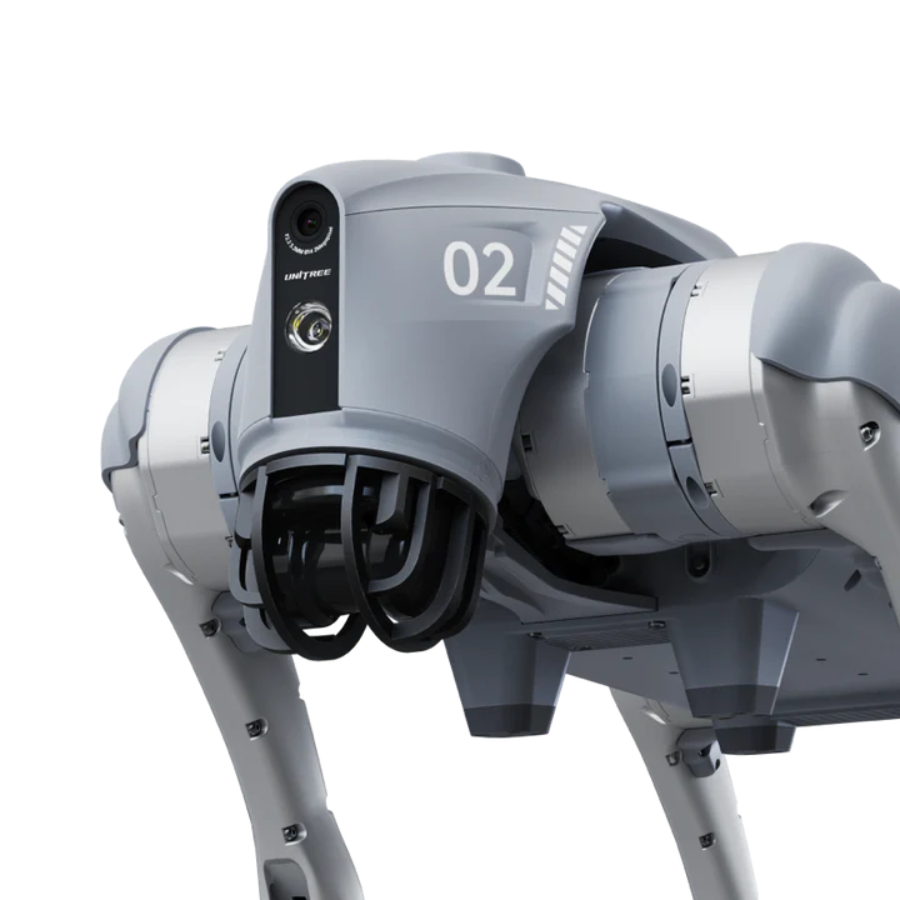

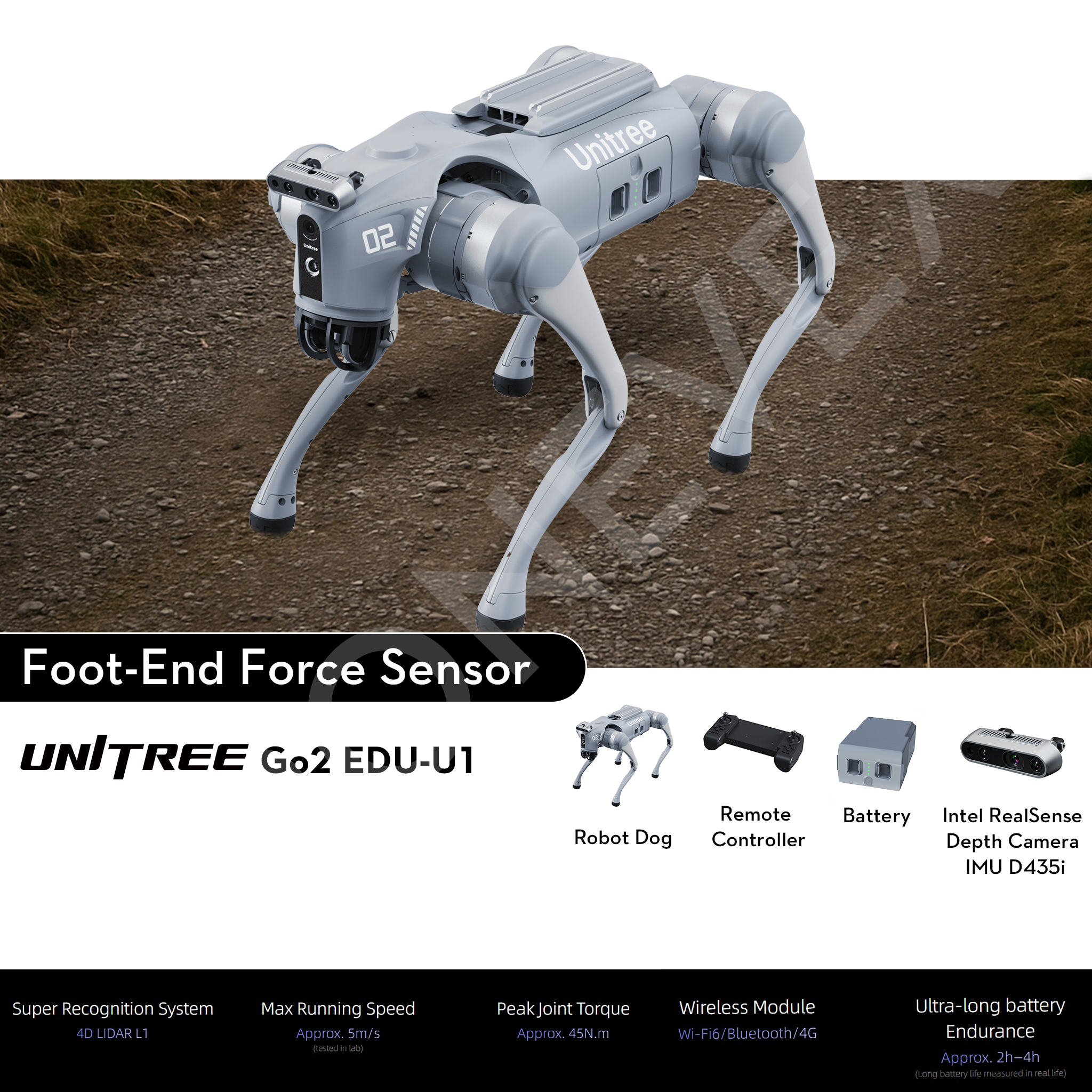

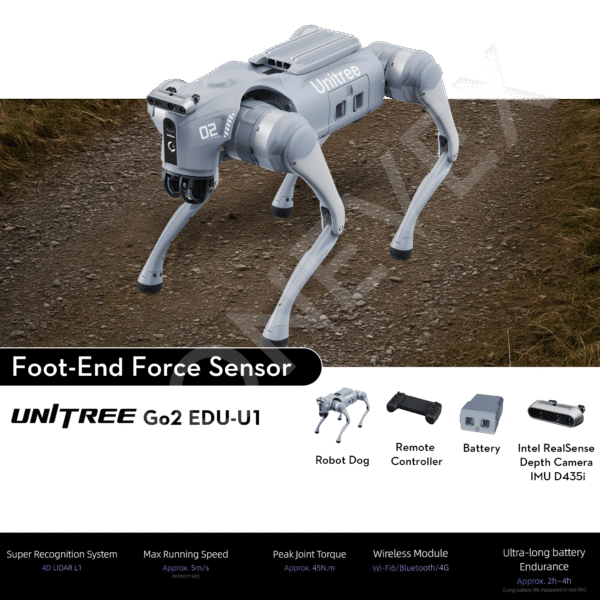

Unitree Go2 EDU U1
The Unitree Go2 Edu U1 Robot Dog is a next-generation quadruped robot built for advanced mobility and AI-driven performance. Moreover, it comes equipped with Unitree’s proprietary 4D LIDAR, offering ultra-wide 360°x90° recognition for precise terrain navigation with minimal blind spots. Thanks to large-scale AI simulation, the robot performs complex actions such as upside-down walking, climbing over obstacles, and adaptive rollover with impressive stability.
Additionally, it supports flexible battery options that extend its operational time during demanding tasks. The Intelligent Side-follow System further enhances positioning accuracy, especially in dynamic environments. As a result, the Go2 excels in educational, research, and industrial settings. Compact yet powerful, it redefines robotic possibilities in a user-friendly, high-tech form.
Equipped with AI vision cameras, an IMU, and depth vision, the Unitree Go2 EDU U1 provides comprehensive sensory input for real-time environment perception. The optional 4D LiDAR L1 enhances its ability to navigate complex terrains with 360°x90° hemispherical ultra-wide recognition.
Features of Unitree Go2 Edu U1 Robot Dog
Advanced 4D Ultra-Wide LiDAR for Precise Environmental Awareness
The Unitree Go2 EDU U1 integrates state-of-the-art 4D LiDAR technology that provides ultra-wide, high-precision scanning of its surroundings. This allows the robot to detect and avoid obstacles with exceptional accuracy, even in complex or cluttered environments. By minimizing blind spots and capturing detailed spatial data, the Go2 navigates challenging terrains smoothly, making it ideal for applications in research, industrial inspection, and autonomous exploration.
AI-Driven Autonomous Mobility
Powered by cutting-edge AI algorithms, the Go2 evaluates its environment in real time, enabling autonomous and adaptive movement. Whether traversing urban landscapes, indoor facilities, or rugged outdoor terrains, it adjusts its path dynamically for safe and efficient navigation. This intelligent mobility system allows the robot to perform reliably in diverse and unpredictable scenarios, supporting tasks that require precision and adaptability.
Enhanced Battery Options for Extended Missions
Unitree Go2 Edu U1 offers customizable battery solutions, including standard and extended capacity options, to meet the demands of long-duration operations. Its high-capacity battery ensures uninterrupted performance during industrial inspections, research projects, or educational demonstrations, providing reliability even in intensive, continuous tasks. Quick-charging capabilities further enhance operational efficiency.
ISS2.0 Intelligent Side-Follow System
The upgraded ISS2.0 system enables Unitree Go2 Edu U1 to follow a person or object with high accuracy, maintaining consistent tracking even in crowded or fast-changing environments. This makes it perfect for collaborative tasks, guided inspections, or demonstrations, where close-proximity support and precise following are critical.
Real-Time 3D LiDAR Mapping
The robot’s 3D LiDAR mapping capability allows it to construct detailed, real-time spatial models of its environment. This feature is especially useful for construction monitoring, surveying, exploratory research, and industrial automation, as it enables both precise navigation and comprehensive data collection for analysis or reporting.
Dynamic Actions and Flexible Poses
Thanks to its flexible joints and advanced motor control, Unitree Go2 Edu U1 performs dynamic movements with ease. It can execute complex poses and gestures, making it suitable for educational demonstrations, interactive learning, and industrial applications. Its lifelike expressions combined with technical precision allow it to adapt to both functional and engaging use cases.
Additional Features
Dual HD Cameras with Depth Sensing: Capture high-resolution video and depth information for real-time monitoring and AI processing. Modular Design: Supports integration of additional sensors, payloads, or experimental devices for research and development. Wi-Fi 6 and Bluetooth 5.2 Connectivity: Ensures fast, reliable communication for remote control and data transfer. ROS/ROS2 and SDK Support: Enables advanced programming and custom AI algorithm deployment. High-Speed Mobility: Can run up to 3.7 m/s, making it suitable for rapid response or dynamic tasks. Stability Across Terrains: Maintains balance while climbing slopes, navigating stairs, or moving on uneven surfaces. Quiet Operation: Low-noise movement suitable for indoor labs or environments where minimal disturbance is essential. Real-Time Data Streaming: Supports live video, LiDAR, and sensor data streaming for analysis and monitoring.
Applications
| Use Case | Description |
|---|---|
| Education & Research | Ideal for universities and robotics labs to teach and explore robotics concepts. |
| AI & Computer Vision | Suitable for AI & computer vision researchers to develop and test algorithms. |
| Defense Innovation | Applicable in defense innovation and tactical trials for advanced robotics applications. |
| Robotics Development | Provides a platform for robotics development and experimentation in various fields. |
Collaborative Robotics for Team-Based Tasks
The Unitree Go2 EDU U1 is designed to seamlessly interact with humans and other robotic systems, making it ideal for collaborative tasks in research, industrial, and educational settings. Its sensors and AI algorithms allow it to maintain safe distances, synchronize movements, and respond intelligently to dynamic environments. This capability enables multiple robots to operate together or alongside humans, enhancing efficiency in tasks like laboratory experiments, warehouse logistics, and coordinated field research.
Advanced Data Logging and Analytics
Beyond navigation and mobility, the Unitree Go2 Edu U1 excels in capturing, storing, and transmitting sensor and operational data. Every movement, obstacle encounter, and environment scan can be logged for post-mission analysis, enabling researchers and engineers to refine algorithms or optimize operational workflows. This makes the robot not only a platform for hands-on learning but also a powerful tool for AI model development, robotics research, and industrial process improvement.
Adaptive Learning and Behavior Customization
Unitree Go2 Edu U1 allows users to implement custom learning algorithms and behavior patterns, making it highly adaptable for research and educational projects. Students and developers can program it to respond to specific stimuli, navigate unique environments, or execute complex task sequences, offering a hands-on platform for AI training and robotics experimentation. This flexibility ensures the robot evolves alongside the user’s curriculum or research objectives.
Specifications
Specifications Comparison for different Models
| Category | Go2 AIR | Go2 PRO | Go2 EDU |
|---|---|---|---|
| Configuration Note | Contact Unitree for available configurations | ||
| Dimensions (Standing) | 70 × 31 × 40 cm | 70 × 31 × 40 cm | 70 × 31 × 40 cm |
| Dimensions (Crouching) | 76 × 31 × 20 cm | 76 × 31 × 20 cm | 76 × 31 × 20 cm |
| Weight (with battery) | ≈ 15 kg | ≈ 15 kg | ≈ 15 kg |
| Material | Aluminum alloy + engineering plastic | Aluminum alloy + engineering plastic | Aluminum alloy + engineering plastic |
| Voltage Range | 28V – 33.6V | 28V – 33.6V | 28V – 33.6V |
| Max Power Output | ≈ 3000W | ≈ 3000W | ≈ 3000W |
| Payload | ≈ 7 kg (Max ~10 kg) | ≈ 8 kg (Max ~10 kg) | ≈ 8 kg (Max ~12 kg) |
| Top Speed | Up to 2.5 m/s | Up to 3.5 m/s | Up to 3.7 m/s (Max 5 m/s) |
| Max Climb Height | ≈ 15 cm | ≈ 16 cm | ≈ 16 cm |
| Max Climb Angle | 30° | 40° | 40° |
| Computing Power | – | 8-core High-performance CPU | 8-core High-performance CPU |
| Joint Torque | – | ≈ 45 N·m | ≈ 45 N·m |
| Aluminum Knee Motors | 12 units | 12 units | 12 units |
| Range of Motion | Body: ±48°, Thigh: -200° | ||
| Internal Joint Wiring | Yes | Yes | Yes |
| Heat Dissipation Pipes | Yes | Yes | Yes |
| 3D LiDAR | Yes | Yes | Yes |
| HD Wide-Angle Camera | Yes | Yes | Yes |
| Foot-End Force Sensor | – | Optional | Yes |
| Wireless Tracking | Optional | Yes | Yes |
| Basic Actions | Yes | Yes | Yes |
| Auto-Scaling Strap | Optional | Yes | Optional |
| OTA Upgrade | Yes | Yes | Yes |
| Graphical Programming | Yes | Yes | Yes |
| Wi-Fi 6 (Dual-Band) | Yes | Yes | Yes |
| Bluetooth | Yes (5.2 / 4.2 / 2.1) | Yes | Yes |
| 4G Module | Optional | Yes | Yes |
| Voice Function | Optional | Yes | Yes |
| Side-Follow System (ISS 2.0) | Optional | Yes | Yes |
| Obstacle Avoidance | Yes | Yes | Yes |
| Charging Pile Support | Optional | Optional | Yes |
| SDK / Dev Support | Optional | Optional | Yes |
| Manual Controller | Optional | Optional | Included |
| High Compute Module | Optional | Optional | NVIDIA Jetson Orin (40–100 TOPs) |
| Battery Type | Standard (8000mAh) | Standard (8000mAh) | Long Endurance (15000mAh) |
| Battery Life | ≈ 1–2 hours | ≈ 1–2 hours | ≈ 2–4 hours |
| Charger | Standard (33.6V / 3.5A) | Standard (33.6V / 3.5A) | Fast (33.6V / 9A) |
| Warranty | 6 months | 12 months | 12 months |
FAQs
What is the difference between the Unitree Go2 AIR, PRO, and EDU models?
The main differences lie in payload capacity, maximum speed, battery options, and computing power.
EDU is tailored for advanced research, featuring an optional NVIDIA Jetson Orin module and a larger 15000mAh battery for extended use.
PRO offers a balance of speed (up to 3.5 m/s) and features like force sensors and ISS 2.0.
AIR is the lightweight, entry-level option with core features for general mobility and autonomy
What is the maximum speed of the Unitree Go2 EDU U1?
Unitree Go2 EDU U1 can run up to 3.7 m/s (~13 km/h).
How long does the battery last?
With the 8000 mAh (Standard) battery, the runtime is up to 1–2 hours, depending on load and terrain.
What is the payload capacity?
Unitree Go2 Edu U1 supports a payload capacity of 8–10 kg, suitable for carrying sensors and equipment.
What kind of computing power does Unitree Go2 Edu U1 support?
Unitree Go2 Edu U1 Supports optional NVIDIA Jetson Orin (40–100 TOPS) — ideal for AI, robotics research, and custom development.
What sensors are included in Unitree Go2 Edu U1?
The Unitree Go2 EDU U1 is equipped with AI vision cameras, an IMU, and depth vision. The 4D LiDAR L1 is optional.
Can the Unitree Go2 handle stairs and rough terrain?
Yes.
PRO & EDU models handle up to 40° incline and can climb over 16 cm obstacles.
With AI-powered adaptive mobility, the Go2 navigates stairs, slopes, and uneven surfaces effectively.
Is it possible to program custom actions or behaviors?
Yes. The Go2 supports graphical programming and is designed for secondary development.
This enables users to create custom movements, behaviors, and applications — ideal for education and R&D.
Does the Go2 support real-time control over WiFi or Bluetooth?
Absolutely. It features:
WiFi6 dual-band (802.11ax)
Bluetooth 5.2/4.2/2.1
These enable seamless image transmission, control (RTT 2.0), and monitoring in real time.
What after-sales support and warranty does Unitree offer?
AIR: 6-month warranty
PRO & EDU: 12-month warranty
Warranty covers manufacturer defects, with repair/replacement support under defined conditions.
