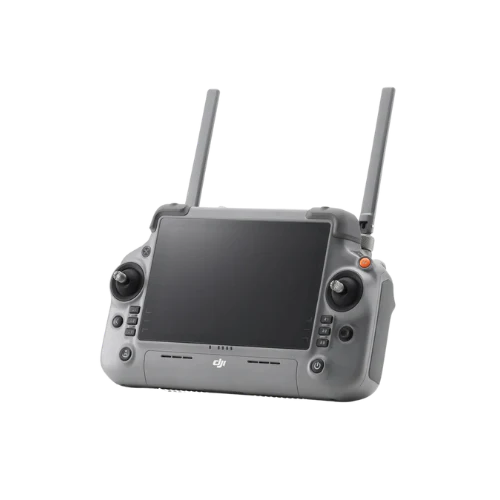

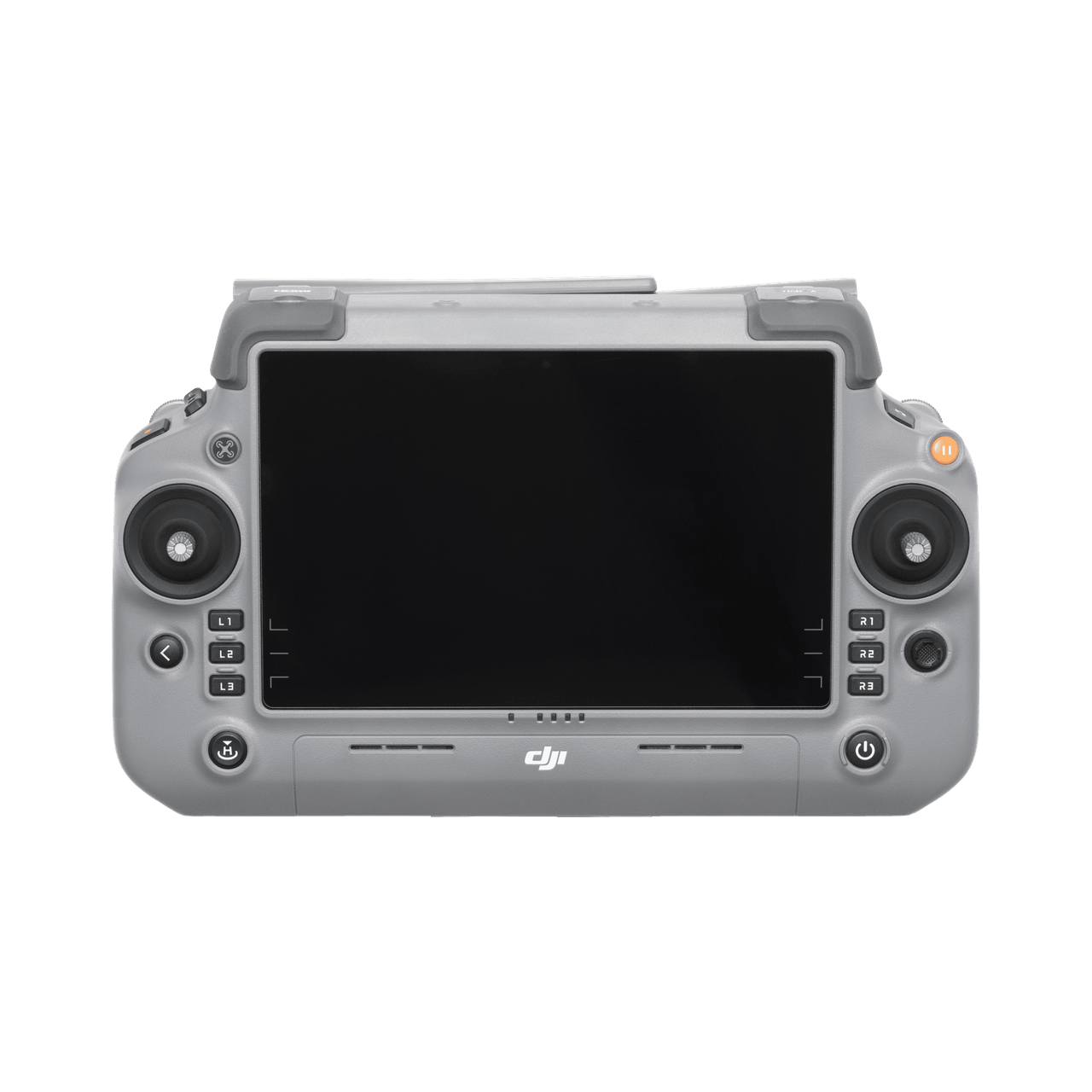

DJI RC Plus 2
The DJI RC Plus 2 is a next-generation remote controller designed for professional and enterprise UAV operations. It boasts a high-brightness 7.02-inch touchscreen that delivers vibrant visuals even in direct sunlight, empowering pilots to maintain clear visibility in challenging outdoor environments. Built to endure, the RC Plus 2 carries an IP54 rating, protecting against dust and water splashes to ensure reliability in adverse conditions.
It integrates the powerful O4 Enterprise video transmission system for smooth, stable live feeds with extended range up to 25 km under ideal conditions. With advanced connectivity options including Wi-Fi 6, Bluetooth 5.2, and the option for 4G hybrid transmission, this controller offers versatile, fast, and responsive communication. Long battery life with an internal 6500 mAh battery plus support for an external WB37 expands operational time to 7 hours. Ergonomics and user experience are enhanced by multi-touch control, customizable buttons, and compatibility with various DJI aircraft, making it an indispensable tool for precision UAV work.
Key Features & Benefits
Ultra-High Brightness Display:
The 7.02-inch 1920×1200 touch screen panel delivers up to 1400 nits brightness, ensuring crisp visuals even under direct daylight. The 10-point multi-touch input supports precise control and intuitive navigation across drone flight apps and settings, optimizing pilot interaction in real-time flight conditions.Robust IP54 Protection:
Designed for challenging outdoor environments, the RC Plus 2’s casing resists dust ingress and water splashes with an IP54 rating. This ruggedness allows pilots to operate worry-free in diverse weather conditions, expanding the usability window for demanding industrial and cinematic drone missions.O4 Enterprise Video Transmission:
Utilizing an advanced multi-beam antenna array and hybrid SDR/4G transmission, the controller supports smooth, low-latency video feeds over distances up to 25 km. This extended range and reliable connection empower high-precision operations in complex terrain and urban settings.Extended Battery Life and Fast Charging:
Featuring a built-in 6500 mAh lithium-ion battery, the RC Plus 2 offers up to 3.8 hours internal runtime. Adding an optional external WB37 battery extends total usage to around 7 hours. Fast PD charging (20 V/3.25 A) minimizes downtime for busy operators.Comprehensive Connectivity Suite:
The controller supports Wi-Fi 6 dual-band, Bluetooth 5.2, HDMI 1.4 output for external displays, USB Type-C with OTG support, and SD card expansion. These enable flexible data transfer, accessory integration, and enhanced user experience in both field and studio environments.
Specifications
| Specification | Details |
|---|---|
| Display Size | 7.02 inches |
| Resolution | 1920 × 1200 |
| Brightness | 1400 nits |
| Touchscreen | 10-point multi-touch |
| Battery Capacity | 6500 mAh (internal), Optional WB37 4920 mAh (external) |
| Battery Runtime | Internal: 3.8 hrs, External: up to 7 hrs (combined) |
| Charging | PD fast charge, max 20 V/3.25 A |
| Operating Temp Range | -20° to 50° C (-4°F to 122°F) |
| Protection Rating | IP54 |
| Video Transmission | O4 Enterprise (SDR/4G hybrid) |
| Transmission Range | Up to 25 km (FCC conditions) |
| Connectivity | Wi-Fi 6, Bluetooth 5.2, HDMI 1.4, USB Type-C OTG, microSD slot |
| Dimensions | 268 × 163 × 94.5 mm |
| Weight | 1.15 kg (without external battery) |
| Supported Aircraft Models | Matrice 4T/4E |
FAQs
What is the maximum transmission distance of the RC Plus 2?
Up to 25 kilometers in unobstructed FCC-compliant environments using O4 Enterprise video transmission.
How long can the RC Plus 2 run on battery alone?
Internal battery lasts about 3.8 hours, extendable to nearly 7 hours with the optional WB37 external battery.
What protection does the RC Plus 2 offer?
An IP54 rating protects against dust ingress and water splashes, enabling reliable outdoor operation.
Which devices can connect to the RC Plus 2?
Features Wi-Fi 6, Bluetooth 5.2, HDMI output, USB Type-C OTG, and microSD card slot for flexible connectivity.
Is the RC Plus 2 compatible with drones other than the Matrice 4 series?
It is designed primarily for Matrice 4T and 4E but can support select DJI enterprise drones; check compatibility before purchase.
