TB 100
TB 100 Intelligent Flight Battery is more than just power—it’s about efficiency and reliability. Its intelligent management system provides vital real-time insights like battery status, temperature, and flight time estimates, while multi-layered protection ensures safe and consistent power delivery in any scenario. Healthier battery performance means uninterrupted aerial operations every time.
- With its 20,254 mAh high-capacity design, the TB 100 allows drones to achieve up to 59 minutes of flight time without payload, ensuring longer missions with fewer interruptions. Its advanced Battery Management System (BMS) constantly monitors voltage, temperature, and power output to keep operations safe and efficient.
- TB 100 is more than just a power source — it’s an intelligent energy solution. The self-heating capability enhances cold-weather reliability, while the auto-discharge feature protects long-term battery health. For professionals demanding efficiency, safety, and endurance, the TB100 is an essential upgrade for the Matrice 400 series.
- Mission-Ready Endurance
With a massive 20,254 mAh capacity and 977 Wh energy, the TB100 battery delivers nearly an hour of flight time—ensuring extended operations with minimal interruptions. - Hot-Swap Without Downtime

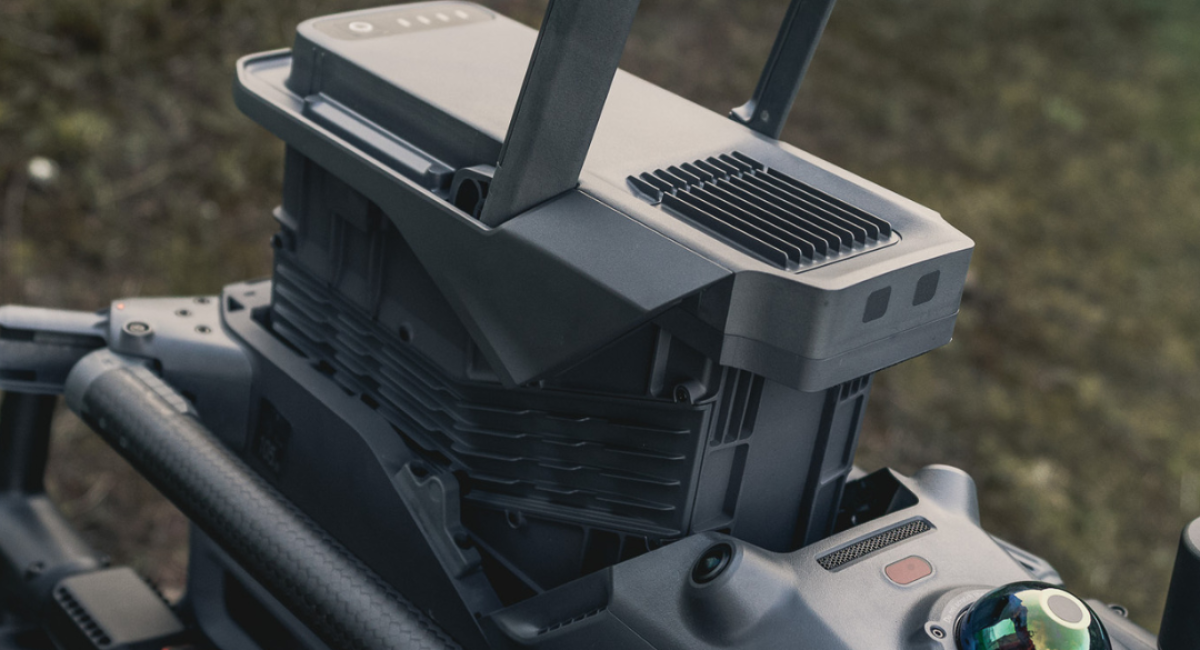

Equipped with a top-insert design and hot-swappable functionality, the TB100 maintains power for up to 45 seconds during battery swaps—preserving GPS lock and streamlining mission continuity. - Built for Extreme, Built to Last
Featuring self-heating and advanced heat dissipation systems, the TB100 performs reliably in environments as cold as –20 °C. Engineered for enterprise use, it supports up to 400 charge cycles, reducing per-mission cost and downtime.
Specifications
| Specification | Details |
|---|---|
| Model | DJI TB100 Intelligent Flight Battery |
| Capacity | 20,254 mAh |
| Energy | 977 Wh |
| Voltage | 48.1 V |
| Max Flight Time | Up to 59 minutes (no payload) |
| Compatible Drone | DJI Matrice 400 |
| Hot-Swap | Yes (45-sec onboard power) |
| Self-Heating | Supported |
| Intelligent Features | BMS, Auto-Discharge, Cell Monitoring |
| Weight | Approx. 3.7 kg |
| Operating Temperature | -20°C to 50°C |
FAQ's
What drones are compatible with the DJI TB 100 Battery?
Designed specifically for the DJI Matrice 400 series.How long does the battery last per charge?
Up to 59 minutes of flight time without payload under ideal conditions.Does the TB 100 support hot-swapping?
Yes, it provides up to 45 seconds of onboard power for seamless hot-swaps.Can I use the TB 100 in cold weather?
Yes, it has a built-in self-heating function for reliable performance in low temperatures.How does the TB 100 ensure battery safety?
It includes an intelligent Battery Management System with auto-discharge, cell balancing, and voltage monitoring.What is the weight of the TB 100?
Approximately 3.7 kg.How does self-heating work?
The battery automatically warms itself in cold conditions to maintain optimal performance.Can it be stored for long periods?
Yes, its auto-discharge function prevents overcharging and maintains battery health.Is it suitable for industrial applications?
Absolutely — it’s ideal for mapping, inspection, surveying, and search-and-rescue missions.How many batteries are required for the Matrice 400?
The Matrice 400 typically operates with two TB 100 batteries for redundancy and extended flight capability.
