Chasing M2S Standard

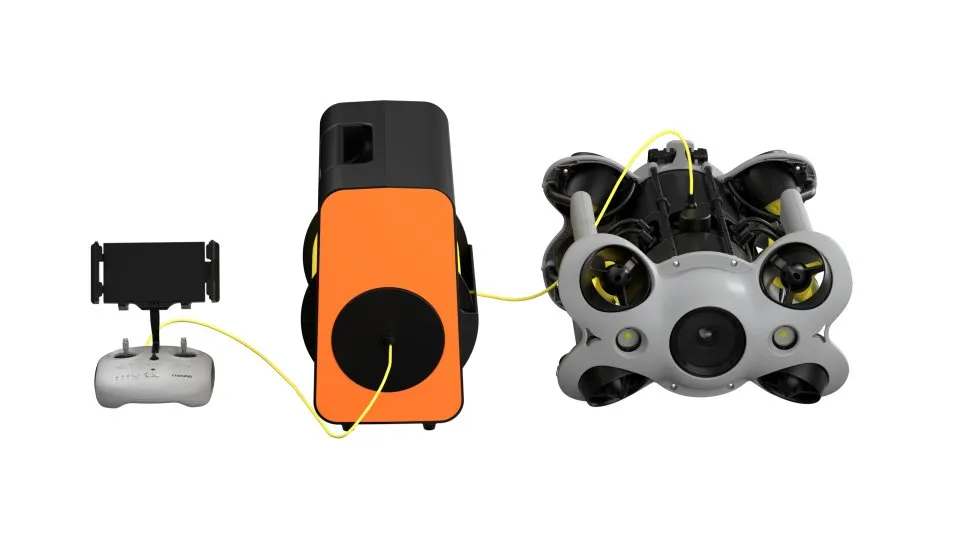

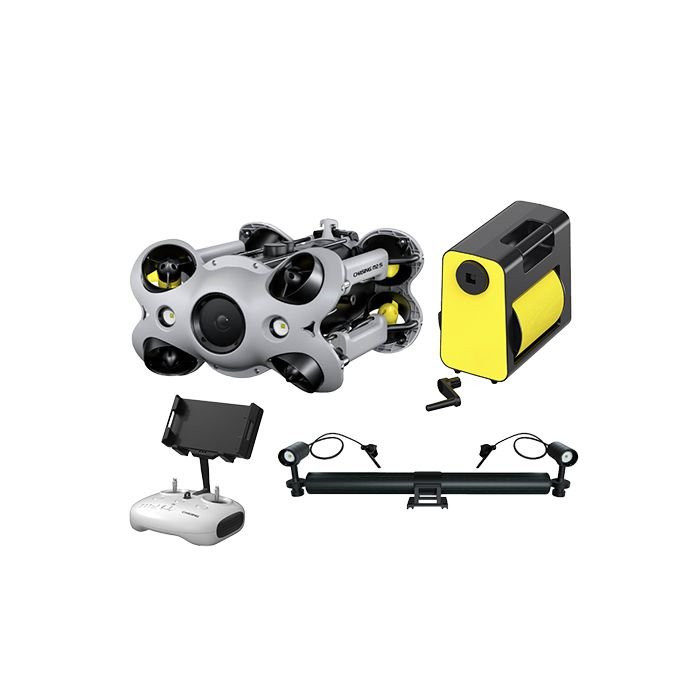

The Chasing M2S Standard is a robust industrial-grade underwater drone (ROV) designed for demanding marine tasks, offering enhanced depth reach with its 200 meter tether for extended inspections and explorations.
Featuring a 4K UHD camera and high-lumen floodlights, the ROV captures crystal-clear imagery even in low-light conditions—supported by smart imaging algorithms like Chasing Aquavision.
Its eight vectored thrusters and anti-stuck motor technology ensure smooth and reliable navigation, even in turbulent conditions, while its sealed structure enhances durability and watertight stability.
Chasing M2S Standard elevates underwater exploration with its comprehensive control and operational systems—powered by a 97 Wh battery providing up to four hours of submerged performance. When paired with the optional 200 Wh battery, extended mission durations are easily attainable without compromising maneuverability or reliability.

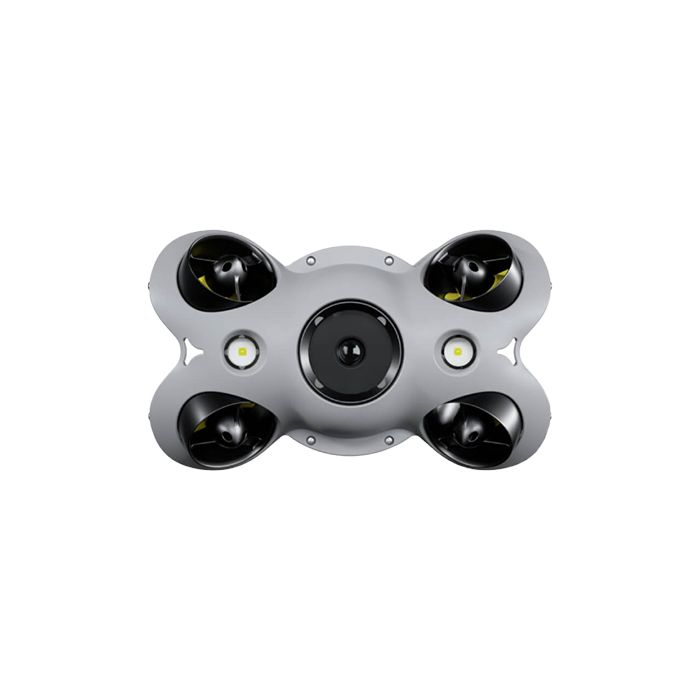

Engineered for precision, the ROV sports eight vectored-thrusters in a butterfly wing arrangement, granting true omni-directional movement. Combined with the NeptuneX control algorithm and anti-stuck C-Motor 3.0, this configuration ensures exceptional positional stability and resistance to underwater flows and obstructions.

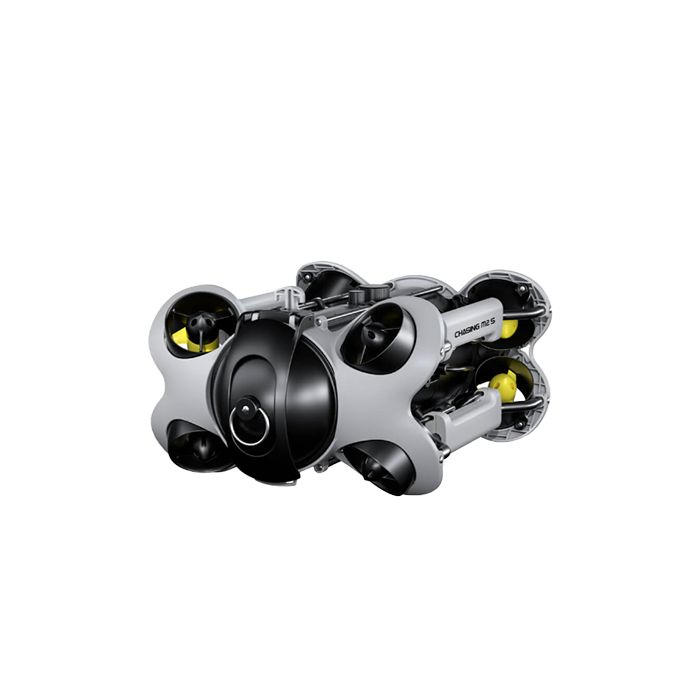

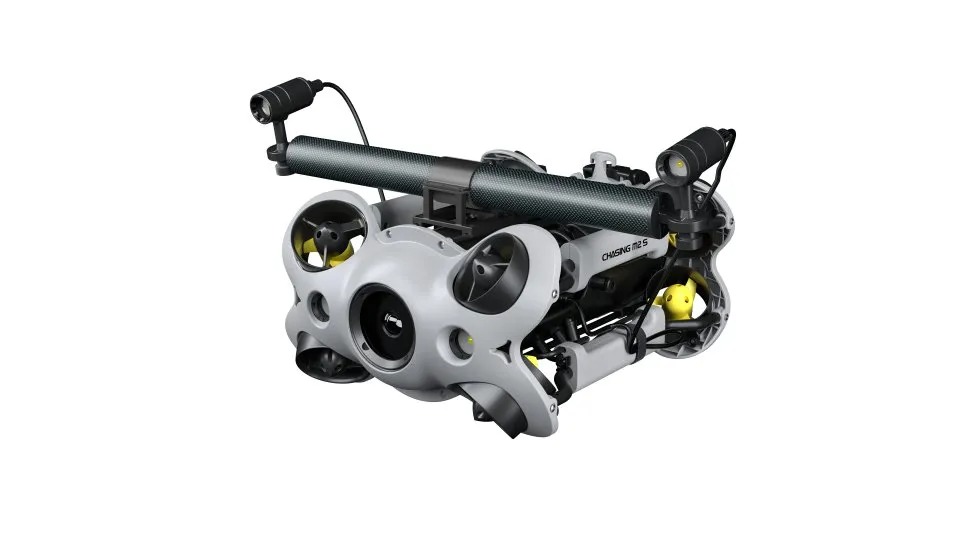

For imaging, Chasing M2S- Standard doesn’t compromise. The integrated 4K camera (12MP, 1/2.3″ CMOS, F2.8) along with dual 2000 lm LED lights delivers detailed, accurate visuals. Enhanced by the Chasing Aquavision algorithm, image clarity, colour fidelity, and noise reduction are significantly improved, perfect for underwater projects from scientific research to infrastructure inspection.

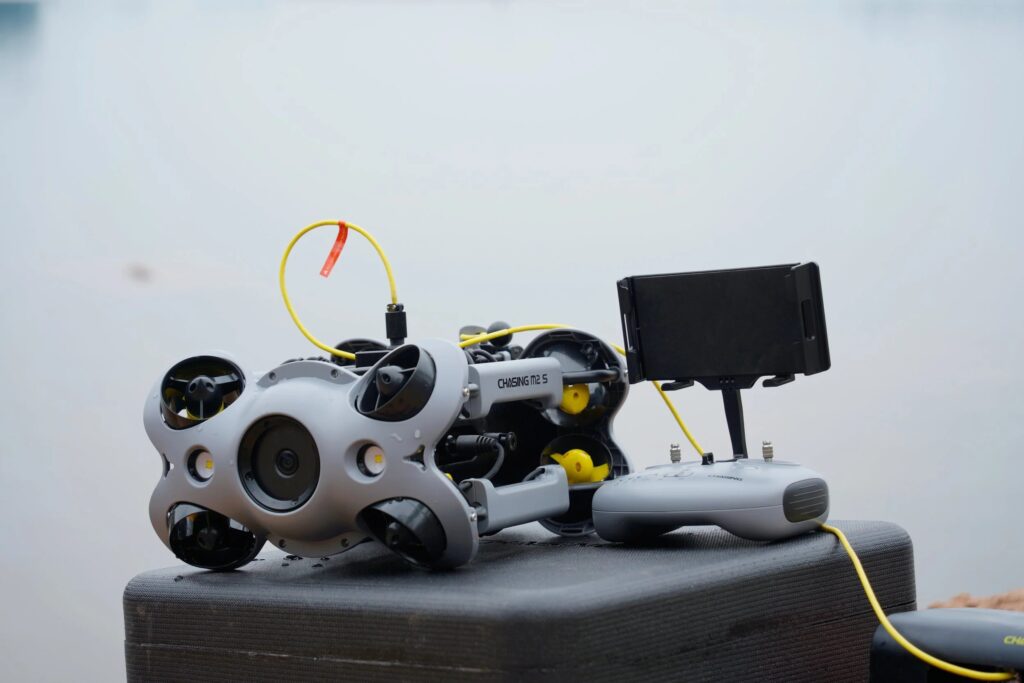

Convenience is always a priority. Lightweight and compact despite its professional-grade build, the M2S-Standard is quick to deploy, portable by a single operator, and designed to streamline operations. Its robust sealed body ensures durability, while propeller protection via its butterfly wing frame supports long-lasting field usage.
Features
The Chasing M2S Standard blends performance, intelligence, and ease of use:
- Stable, omni-directional movement via eight vectored thrusters powered by anti-stuck motor tech ensures precise control in dynamic environments.
- Pro-level visual capture and lighting: The 4K EIS camera, high-brightness LEDs, and Aquavision algorithm make it ideal for low-visibility inspections and cinematography.
- Extended tether range (200 m) enables deep dives for ship hull inspections, aquaculture monitoring, undersea rescue, pipeline surveillance, and scientific exploration.
- Reliable and versatile design: NeptuneX control, sealed body, and lightweight build equip operators to conduct rigorous tasks safely and efficiently.
Use Cases
- Offshore Oil & Gas Inspections – Monitor subsea pipelines, rigs, and underwater infrastructure without costly dive operations.
- Port & Harbor Security – Underwater surveillance for safety checks, contraband detection, and routine security sweeps.
- Bridge & Infrastructure Assessments – Inspect underwater foundations, piers, and bridge supports.
- Scientific Exploration – Study marine biodiversity, coral reefs, and underwater geology.
- Law Enforcement & Forensics – Evidence recovery, submerged vehicle investigation, and underwater crime scene analysis.
- Tourism & Documentary Filmmaking – Capture breathtaking underwater footage for tourism promotion, documentaries, and media.
- Utility & Energy Sector – Inspection of submerged cables, wind farm foundations, and hydropower turbines.
- Recreational Exploration – Diving alternatives for exploring shipwrecks, caves, and underwater heritage sites.
- Training & Education – Teaching oceanography, marine biology, and robotics in academic or research institutions.
- Military & Defense Applications – Covert underwater reconnaissance, mine detection, and coastal monitoring.
Specifications
| Feature | Specification |
|---|---|
| Type | Industry-grade Underwater ROV |
| Battery | 97 Wh standard, optional 200 Wh backup (runtime: up to 4 hrs) |
| Tether Cable | 200 meters (expandable) |
| Max Depth | 100 m / 328 ft |
| Propulsion | 8 vectored thrusters (omni-directional) with anti-stuck C-Motor 3.0 |
| Control System | NeptuneX (C-Sense) intelligent navigation |
| Camera | 4K UHD video, 12 MP stills, F2.8 aperture, 1/2.3″ CMOS sensor |
| Lighting | 2 x 2000 lumen LED floodlights, dimmable |
| Imaging Tech | Chasing Aquavision algorithm, EIS, wide-field FOV |
| Size/Weight | ~380 x 267 x 165 mm; ~4.5 kg |
| Applications | Inspection, marine research, aquaculture, rescue, content creation |
| Portability | Compact, single-operator design, quick deployment |
FAQ's
What is the maximum operational depth of the Chasing M2S Standard?
Up to 100 meters (328 feet), suitable for most professional underwater tasks.How long can Chasing M2S Standard operate on a single battery?
The 97 Wh battery delivers up to 4 hours underwater. A 200 Wh backup battery is optionally available for extended missions.What camera capabilities does it have?
Supports 4K UHD video and 12 MP photography with EIS, wide field of view, and high-quality LEDs for low-light conditions.How does Chasing M2S Standard maintain stable movement underwater?
Its eight vectored thrusters and anti-stuck motors ensure precise omni-directional navigation, even in currents.What control system does it use?
NeptuneX (C-Sense) intelligent flight control provides advanced stabilization and easy maneuvering.What are the common applications?
Ideal for inspections (hulls, docks, pipelines), aquaculture monitoring, scientific research, underwater rescue, and cinematography.Is Chasing M2S Standard portable enough for single-person use?
Yes—its compact design and lightweight build allow rapid deployment by a single operator.Does it support live streaming?
Yes—supports live-stream video and social media sharing via the accompanying app and controller.What lighting does Chasing M2S Standard include?
Equipped with two 2000 lumen floodlights, adjustable for brightness and ideal for deep or murky waters.Is the battery swappable?
Yes—the battery module is user-accessible and supports a higher capacity backup option.
