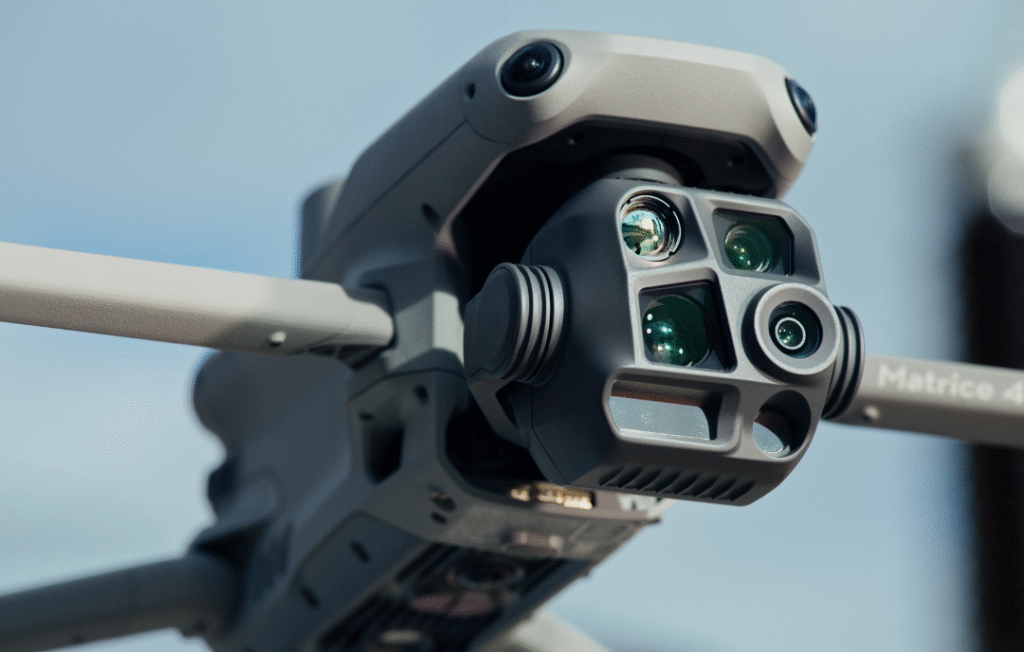

DJI Matrice 4T – Precision Multi-Sensor Drone for Industrial Missions
The DJI Matrice 4T Combo Advanced Enterprise Drone marks a significant step forward in professional aerial operations, tailor-made for both industrial and emergency response missions. With its multi-sensor compact design and powerful imaging suite, this drone provides high-resolution RGB and thermal cameras, supported by advanced stabilization for crystal-clear images and footage. Enhanced obstacle avoidance, a rugged build, and all-around sensing allow the Matrice 4T to excel in challenging environments, whether it’s performing close inspections of power grids, mapping large construction sites, or supporting real-time search and rescue operations.
Intelligence is at the core of the Matrice 4T, offering smart flight modes like FlyTo, Point of Interest, and Smart Track that autonomously adjust flight paths for efficient, safe missions. These features harness onboard AI to automate complex tasks—such as continuous structure observation or rapid navigation in disaster response—making team coordination seamless and boosting productivity in critical scenarios. Enterprise-grade transmission keeps crews connected up to 25 km away, ensuring reliable data transfer and live monitoring for teams spread across vast work sites.
Operational reliability is guaranteed through redundant safety systems, rapid 15-second takeoff, and weather-resistant carbon fiber construction. GNSS + Vision Fusion Positioning and Navigation systems let the Matrice 4T maintain flight stability and safe return-to-home, even in signal-challenged environments. Its modular payload capability, integration with DJI FlightHub, and remote operation empower organizations to meet dynamic needs across surveying, agriculture, disaster management, and security—all with a single versatile drone platform.
Key Features and Advanced Imaging Systems
The DJI Matrice 4T Combo represents the pinnacle of professional-grade drone technology, packed with state-of-the-art imaging systems and features that redefine aerial mission capabilities. This advanced enterprise drone leverages cutting-edge sensors, intelligent flight controls, and superior payload options to deliver unparalleled precision and versatility in the field. Designed to adapt to diverse applications such as industrial inspection, emergency response, and environmental monitoring, the Matrice 4T provides users with robust tools to capture high-definition imagery, thermal data, and precise measurements all in a single, seamless flight.
High-Resolution Dual-Camera System
The DJI Matrice 4T boasts a powerful dual-camera setup combining a 48MP 1/1.3-inch CMOS wide-angle camera with a 48MP medium telephoto camera. This enables crystal-clear captures across vast overviews and close-up inspections with up to 56x hybrid zoom, making it perfect for detailed industrial inspections, mapping, and monitoring.Thermal Imaging Excellence
Equipped with an advanced infrared thermal sensor capable of up to 1280 × 1024 resolution with Super Resolution enabled, the Matrice 4T excels in heat detection. Its ultra-high resolution thermal mode reveals minute temperature differences, enabling precise monitoring for search and rescue, electrical inspection, and firefighting applications, all calibrated for real-time accuracy.Laser Range Finder for Precision Measurement
The integrated laser rangefinder extends operational accuracy with a measurement range up to 1800 meters and extremely high precision. It supports detailed distance measurement even under complex oblique conditions and aids in accurate mapping and collision avoidance, elevating the safety and reliability of each flight mission.Robust Night and Low-Light Performance
With ISO sensitivity reaching up to 409,600 in night mode, the Matrice 4T captures highly detailed images and video in challenging low-light conditions. Combined with a near-infrared (NIR) auxiliary light with a 100-meter illumination distance, it enables effective nighttime or low-visibility operations, crucial for emergency response and surveillance.Advanced Obstacle Sensing and Navigation
The drone includes omnidirectional obstacle sensing using a combination of binocular vision sensors, mmWave radar, and infrared sensors. This comprehensive sensor fusion ensures safe navigation and automatic collision avoidance in complex environments, empowering pilots to focus on mission objectives while maintaining maximum safety.
AI Integration and Autonomous Capabilities
The DJI Matrice 4T Combo is infused with cutting-edge AI integration and autonomous capabilities designed to transform aerial operations with intelligence and precision. Equipped with a built-in AI model, this drone can accurately detect and identify vehicles, vessels, and individuals in real time, making it exceptionally valuable for search and rescue missions, security patrols, and other critical applications. Its AI-powered subject tracking automatically locks onto targets, maintaining smooth, dynamic observation even if the subject becomes partially obscured or moves unpredictably. This intelligent tracking significantly enhances mission success rates while reducing pilot fatigue and manual control demands.
Moreover, the DJI Matrice 4T Combo supports a wide array of automated flight modes that further enhance operational efficiency and safety. Features such as Smart Track for continuous target monitoring, Point of Interest (POI) for precise 3D modeling and fixed-point observations, and FlyTo for optimized autonomous navigation make it adaptable to diverse industrial scenarios. Its seamless integration with DJI’s software platforms allows operators to design complex flight paths, receive real-time data analytics, and switch between AI models for specialized tasks. Together, these autonomous functionalities coupled with robust obstacle sensing and redundancy systems mark the DJI Matrice 4T as a formidable intelligent platform that empowers enterprises to execute sophisticated aerial missions with speed, accuracy, and confidence.
Specification
| Specification | Details |
|---|---|
| Max Takeoff Weight | 1420 g (Standard Propellers), 1430 g (Low-Noise Propellers) |
| Dimensions | Folded: 260.6×113.7×138.4 mm; Unfolded: 307.0×387.5×149.5 mm |
| Max Payload | 200 g |
| Max Ascent Speed | 10 m/s (6 m/s with accessories) |
| Max Descent Speed | 8 m/s |
| Max Speed | 25 m/s |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Wind Resistance | Up to 12 m/s during takeoff and landing |
| GNSS Support | GPS, Galileo, BeiDou, and GLONASS (with RTK enabled) |
| Camera System | 48MP 1/1.3″ CMOS Wide Camera, 48MP Medium Tele Camera, 48MP Telephoto Camera (1/1.5″ CMOS) |
| Thermal Camera Resolution | 1280 × 1024 (High-Res Mode); 640 × 512 (Standard) |
| Infrared Wavelength | 8 μm to 14 μm |
| Infrared Temperature Accuracy | ±2°C or ±2% (High Gain); ±5°C or ±3% (Low Gain) |
| Laser Range Finder | 0.4-200 m measurement range, ±(0.2 + 0.0015 * Distance) accuracy |
| Obstacle Sensing | Omnidirectional with binocular vision, mmWave radar, and infrared sensors |
| Video Transmission Range | Up to 25 km max transmission distance with OcuSync Enterprise |
| Battery | 14.76 V, 6741 mAh Li-ion 4S, 99.5 Wh |
| Controller Display | 7.02″ touchscreen, 1920×1200 resolution, 1400 nits brightness |
| Low-Light Capability | ISO 100 to 409600 in night mode, Near-Infrared (NIR) auxiliary light with 100 m illumination |
| Gimbal | 3-axis stabilized with ±0.1° alignment accuracy, tilt range -140° to 50°, control speed 120°/s |
Multi-Sensor Payloads: Thermal, RGB, and Zoom Cameras
High-Resolution RGB Cameras
The DJI Matrice 4T is equipped with three powerful RGB cameras including a 48MP wide-angle camera, a 48MP medium telephoto camera, and a 48MP telephoto camera, allowing users to capture high-definition images with precise detail. The telephoto camera offers up to 56x hybrid zoom, ideal for inspecting hard-to-reach infrastructure or distant targets without compromising image quality.Advanced Thermal Imaging System
This drone integrates an infrared thermal camera providing resolutions up to 1280 × 1024 pixels in Super Resolution mode, enabling accurate detection of subtle variations in temperature. The thermal camera supports real-time temperature measurement calibrated with an onboard sensor, and its high sensitivity allows for effective applications in firefighting, search and rescue, and industrial inspections.Laser Range Finder for Accurate Distance Measurement
An integrated laser rangefinder provides precise distance measurement up to 200 meters, enhancing situational awareness and data accuracy. This feature supports detailed mapping, collision avoidance, and RTK (Real-Time Kinematic) positioning to ensure centimeter-level location precision during complex surveying or industrial inspections.Low-Light and Night Operation
With an ultra-high ISO sensitivity of up to 409,600 in night mode and a near-infrared (NIR) auxiliary light capable of illuminating up to 100 meters, the Matrice 4T is perfectly equipped for capturing clear visuals in low-light or nighttime conditions, significantly extending operational hours for surveillance and safety missions.Comprehensive Sensor Fusion for Safety and Efficiency
Combining data from thermal, RGB, and zoom cameras with advanced obstacle avoidance sensors like mmWave radar and binocular vision, the Matrice 4T ensures safe navigation and optimized data collection in challenging environments. This multi-sensor payload fusion allows for diverse applications ranging from infrastructure inspection to emergency response, making it a versatile tool for any enterprise.
Case Studies and Success Stories from Real-World Deployments
The DJI Matrice 4T has emerged as a game-changing drone platform in numerous real-world deployments, bringing significant advancements in data capture, operational efficiency, and safety across industries. One compelling case study comes from a public safety department that utilized the DJI Matrice 4T’s powerful thermal and RGB imaging systems to enhance their search and rescue capabilities. In a rugged mountainous region, the drone’s thermal camera successfully detected missing persons by identifying body heat signatures in dense fog and low-light conditions. This real-time intelligence was critical in reducing search times and focusing rescue efforts with unmatched precision, demonstrating how the DJI Matrice 4T can dramatically improve life-saving operations.
Another impactful deployment involved a utility company employing the DJI Matrice 4T for infrastructure inspection and maintenance. Harnessing the drone’s high-resolution zoom cameras and laser rangefinder, engineers conducted detailed aerial evaluations of power lines, wind turbines, and solar farms without exposing personnel to hazardous conditions. The drone’s AI-powered autonomous flight modes ensured consistent, repeatable inspection routes, optimizing data collection and identifying potential faults like overheating components or structural damage early. This proactive use of the DJI Matrice 4T minimized operational downtime and significantly cut inspection costs, highlighting its value as an asset for enterprise asset management.
Environmental protection agencies have also leveraged the DJI Matrice 4T in wildlife conservation and anti-poaching missions. Equipped with multi-sensor payloads including thermal and near-infrared cameras, the drone facilitated nocturnal monitoring of animal populations and habitat health without disturbing wildlife. Trusted rangers used the drone’s AI-driven detection features to spot unauthorized human activity in protected areas, allowing timely intervention against poaching threats. These real-world successes underline the DJI Matrice 4T’s versatility, reliability, and advanced technology, establishing it not just as a tool, but as a vital partner in transforming aerial operations across diverse fields. Its ability to integrate sophisticated sensors, deliver autonomous precision, and endure challenging environments equips users to meet today’s toughest aerial challenges effectively and safely.
Conclusion
The DJI Matrice 4T is a formidable enterprise drone that delivers exceptional capabilities in precision, safety, and operational efficiency across diverse industries. Engineered with cutting-edge AI, advanced imaging systems, and robust flight performance, it caters specifically to the complex needs of industrial inspection, search and rescue, agriculture, and public safety missions. The Matrice 4T offers unparalleled data acquisition with its multi-sensor payloads, including high-resolution thermal, RGB, and zoom cameras that ensure accurate, real-time insights even in challenging environments.
Beyond its imaging prowess, the Matrice 4T is equipped with intelligent autonomous functions and seamless payload integration that streamline mission workflows and reduce pilot workload. Its long flight endurance and extended transmission range enable vast area coverage, while redundant safety features provide confidence during critical flights. Enterprise-grade software integration allows for detailed mission planning, live monitoring, and fleet coordination, making the DJI Matrice 4T an indispensable tool for enterprises seeking to enhance decision-making and resource management through aerial technology.
In conclusion, the DJI Matrice 4T represents the pinnacle of professional drone innovation, combining versatility, durability, and intelligence in one package. It empowers organizations to perform high-stakes operations with precision and speed, unlocking new potentials in data-driven aerial solutions. As the demand for automated and safe drone operations grows, the DJI Matrice 4T stands ready to meet and exceed expectations, setting new standards for enterprise drone applications worldwide.
