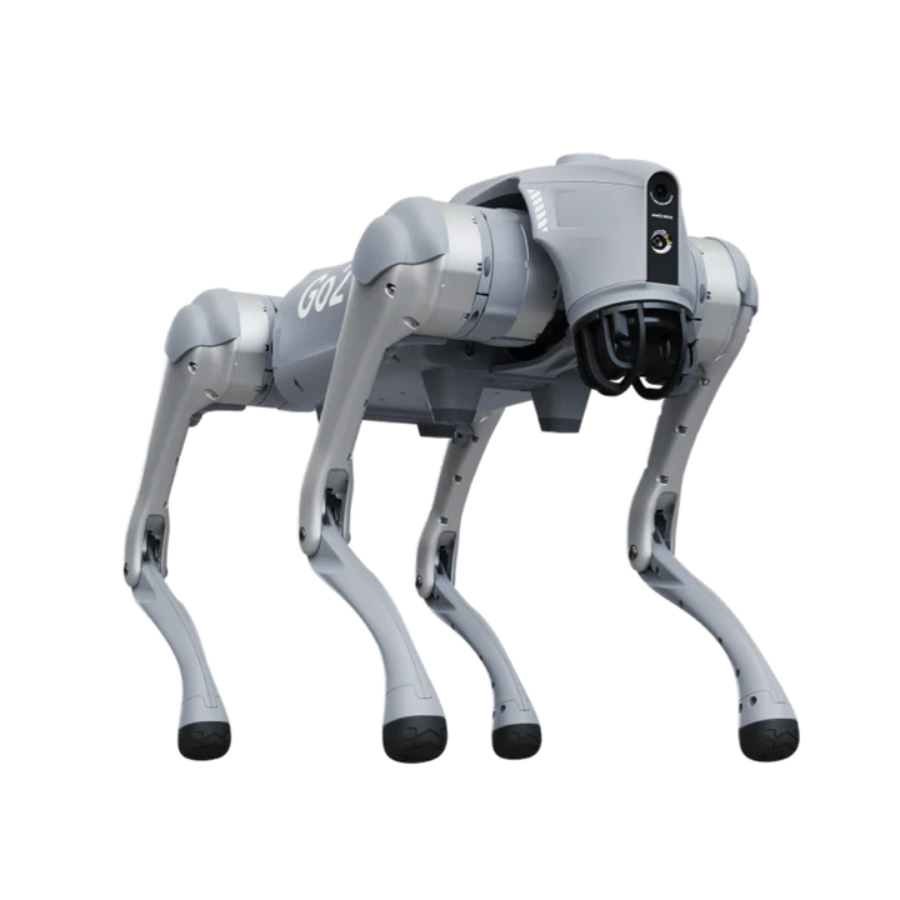

Introducing Unitree Go 2 Edu Robotic The Driving All Terrain
Infinite Revolution with new creature of Embodied AI

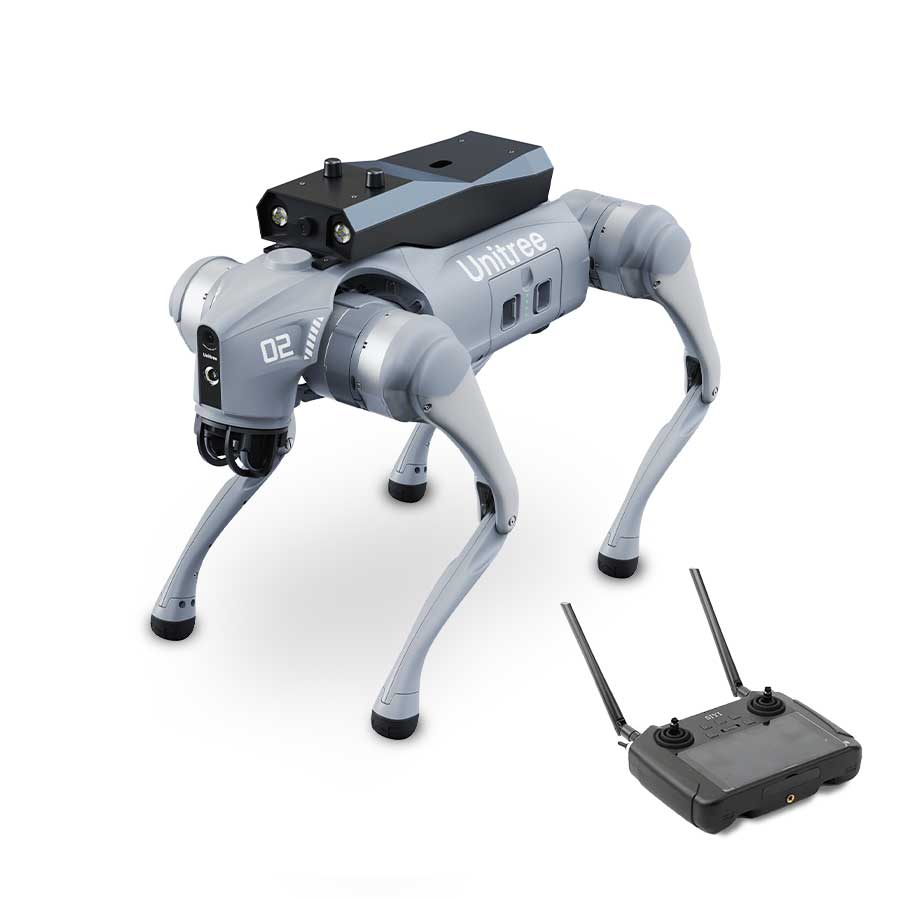

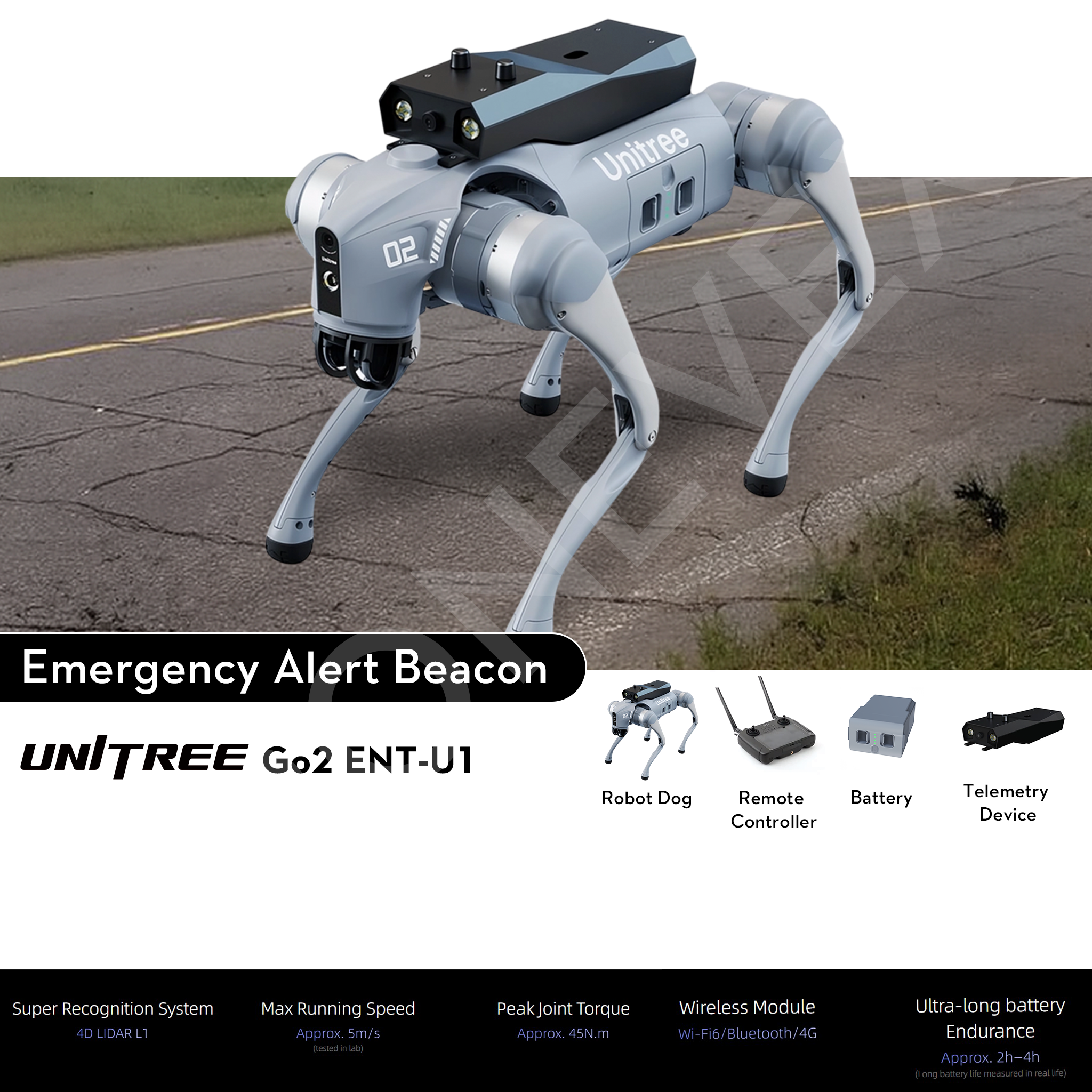

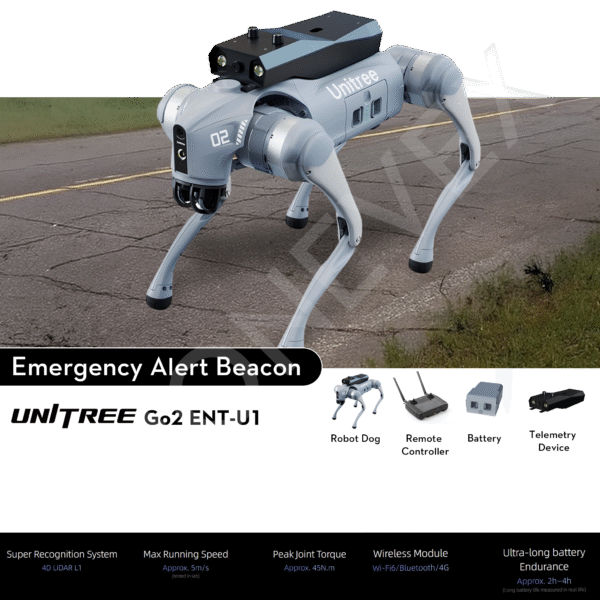

The Unitree Go2 Ent-U1 is a next-generation quadruped robot designed for enhanced mobility, adaptability, and AI-driven performance. Notably, it features Unitree’s proprietary 4D LIDAR technology, which provides ultra-wide 360°x90° recognition. As a result, it enables precise navigation across diverse terrains with minimal blind spots.
Additionally, advanced AI simulations empower the Go2 to execute complex movements such as upside-down walking, obstacle climbing, and adaptive rollover. These actions are performed with remarkable stability and balance, further enhancing its capabilities. Moreover, the Go2 offers flexible battery configurations, allowing for extended operational time across a variety of tasks.
Furthermore, the robot integrates an Intelligent Side-follow System, which significantly improves positioning accuracy and path tracking. Consequently, these features make the Go2 highly efficient and adaptable in dynamic environments. Ideal for education, research, and industrial applications, the Go2 combines intelligent design with robust features, setting a new benchmark in robotics

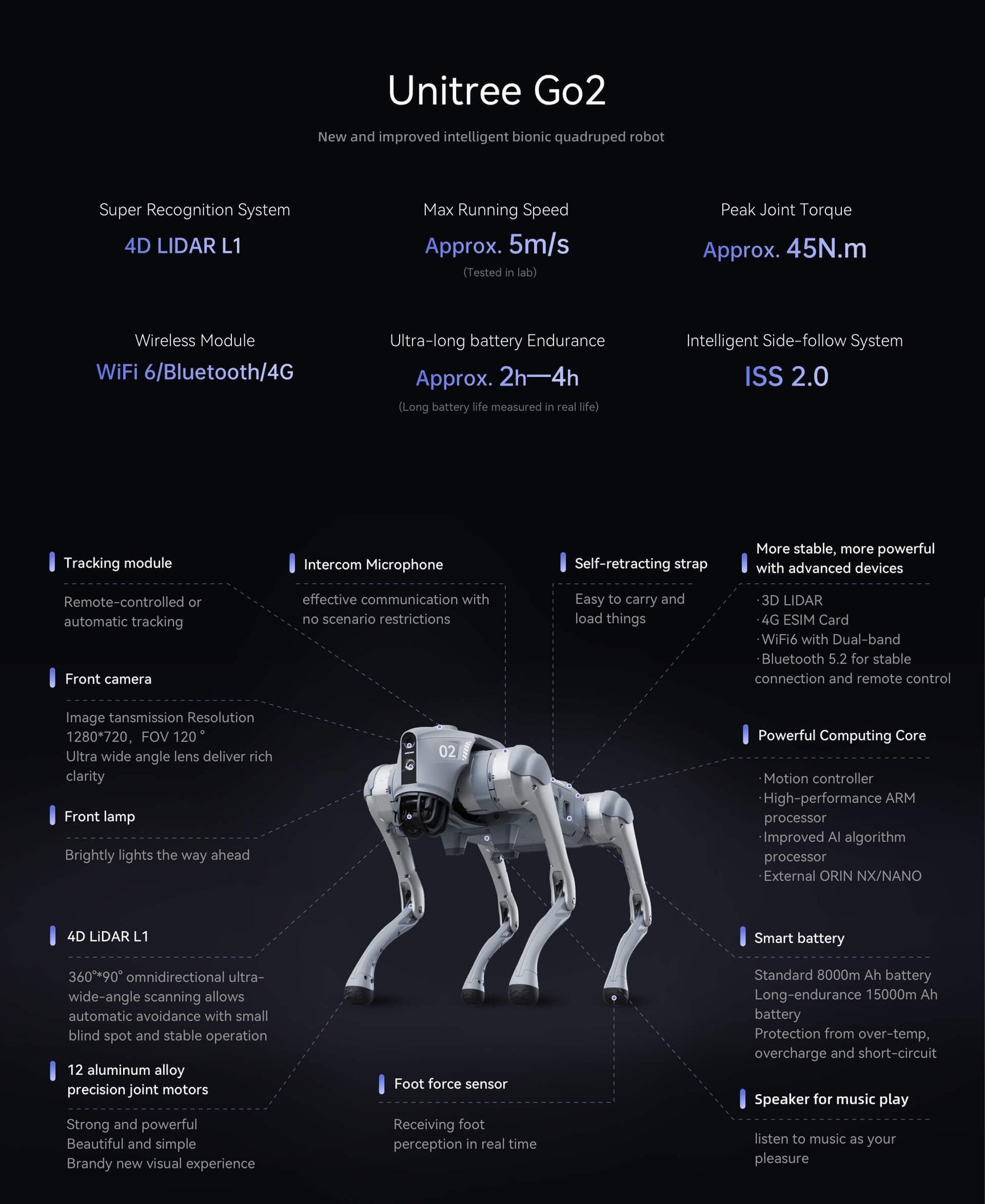

Features of Unitree Go2 Expanded
Intelligent Interaction
Standard Ultra-wide 4D LIDAR upgrades Recognition system by 200%
Unitree Go2 Ent-U1 features with Unitree’s self-developed 4D LIDAR L1 with 360°x90°hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, which makes Go2 realise all-terrain recognizing.
Specifications Comparison for different Models
| Category | Go2 AIR | Go2 PRO | Go2 EDU |
|---|---|---|---|
| Configuration Note | Contact Unitree for available configurations | ||
| Dimensions (Standing) | 70 × 31 × 40 cm | 70 × 31 × 40 cm | 70 × 31 × 40 cm |
| Dimensions (Crouching) | 76 × 31 × 20 cm | 76 × 31 × 20 cm | 76 × 31 × 20 cm |
| Weight (with battery) | ≈ 15 kg | ≈ 15 kg | ≈ 15 kg |
| Material | Aluminum alloy + engineering plastic | Aluminum alloy + engineering plastic | Aluminum alloy + engineering plastic |
| Voltage Range | 28V – 33.6V | 28V – 33.6V | 28V – 33.6V |
| Max Power Output | ≈ 3000W | ≈ 3000W | ≈ 3000W |
| Payload | ≈ 7 kg (Max ~10 kg) | ≈ 8 kg (Max ~10 kg) | ≈ 8 kg (Max ~12 kg) |
| Top Speed | Up to 2.5 m/s | Up to 3.5 m/s | Up to 3.7 m/s (Max 5 m/s) |
| Max Climb Height | ≈ 15 cm | ≈ 16 cm | ≈ 16 cm |
| Max Climb Angle | 30° | 40° | 40° |
| Computing Power | – | 8-core High-performance CPU | 8-core High-performance CPU |
| Joint Torque | – | ≈ 45 N·m | ≈ 45 N·m |
| Aluminum Knee Motors | 12 units | 12 units | 12 units |
| Range of Motion | Body: ±48°, Thigh: -200° | ||
| Internal Joint Wiring | Yes | Yes | Yes |
| Heat Dissipation Pipes | Yes | Yes | Yes |
| 3D LiDAR | Yes | Yes | Yes |
| HD Wide-Angle Camera | Yes | Yes | Yes |
| Foot-End Force Sensor | – | Optional | Yes |
| Wireless Tracking | Optional | Yes | Yes |
| Basic Actions | Yes | Yes | Yes |
| Auto-Scaling Strap | Optional | Yes | Optional |
| OTA Upgrade | Yes | Yes | Yes |
| Graphical Programming | Yes | Yes | Yes |
| Wi-Fi 6 (Dual-Band) | Yes | Yes | Yes |
| Bluetooth | Yes (5.2 / 4.2 / 2.1) | Yes | Yes |
| 4G Module | Optional | Yes | Yes |
| Voice Function | Optional | Yes | Yes |
| Side-Follow System (ISS 2.0) | Optional | Yes | Yes |
| Obstacle Avoidance | Yes | Yes | Yes |
| Charging Pile Support | Optional | Optional | Yes |
| SDK / Dev Support | Optional | Optional | Yes |
| Manual Controller | Optional | Optional | Included |
| High Compute Module | Optional | Optional | NVIDIA Jetson Orin (40–100 TOPs) |
| Battery Type | Standard (8000mAh) | Standard (8000mAh) | Long Endurance (15000mAh) |
| Battery Life | ≈ 1–2 hours | ≈ 1–2 hours | ≈ 2–4 hours |
| Charger | Standard (33.6V / 3.5A) | Standard (33.6V / 3.5A) | Fast (33.6V / 9A) |
| Warranty | 6 months | 12 months | 12 months |
FAQs
What is the difference between the Unitree Go2 AIR, PRO, and EDU models?
The main differences lie in payload capacity, maximum speed, battery options, and computing power.
EDU is tailored for advanced research, featuring an optional NVIDIA Jetson Orin module and a larger 15000mAh battery for extended use.
PRO offers a balance of speed (up to 3.5 m/s) and features like force sensors and ISS 2.0.
AIR is the lightweight, entry-level option with core features for general mobility and autonomy
How does the 4D LIDAR enhance the Go2’s navigation capabilities?
The Go2 integrates 4D LiDAR with 360°x90° coverage, allowing near-blindspot-free recognition. It detects objects as close as 0.05 meters, enabling safe, intelligent navigation across complex or cluttered environments.
Can the Go2 operate autonomously, and how is it controlled?
Yes. The Go2 supports autonomous navigation via:
3D LiDAR mapping
ISS 2.0 Intelligent Side-follow
Custom path setting and point cloud mapping through the companion app.
Control options include:
Mobile app
Manual controller (optional/included depending on the model)
Wireless connectivity (WiFi, 4G
What is the battery life, and are there upgrade options?
AIR & PRO: ~1–2 hours (8000mAh battery)
EDU: ~2–4 hours with the optional 15000mAh battery
Charging time is reduced using the 33.6V 9A fast charger (standard on EDU).
What kind of computing power does the Go2 support?
AIR & PRO: Equipped with an 8-core high-performance CPU
EDU: Supports optional NVIDIA Jetson Orin (40–100 TOPS) — ideal for AI, robotics research, and custom development.
How does ISS 2.0 improve tracking and follow performance?
ISS 2.0 is a wireless vector positioning system that improves tracking accuracy by up to 50% over earlier versions. It allows smooth, intelligent side-following — even around obstacles or in dynamic environments.
Can the Unitree Go2 handle stairs and rough terrain?
Yes.
PRO & EDU models handle up to 40° incline and can climb over 16 cm obstacles.
With AI-powered adaptive mobility, the Go2 navigates stairs, slopes, and uneven surfaces effectively.
Is it possible to program custom actions or behaviors?
Yes. The Go2 supports graphical programming and is designed for secondary development.
This enables users to create custom movements, behaviors, and applications — ideal for education and R&D.
Does the Go2 support real-time control over WiFi or Bluetooth?
Absolutely. It features:
WiFi6 dual-band (802.11ax)
Bluetooth 5.2/4.2/2.1
These enable seamless image transmission, control (RTT 2.0), and monitoring in real time.
What after-sales support and warranty does Unitree offer?
AIR: 6-month warranty
PRO & EDU: 12-month warranty
Warranty covers manufacturer defects, with repair/replacement support under defined conditions.
