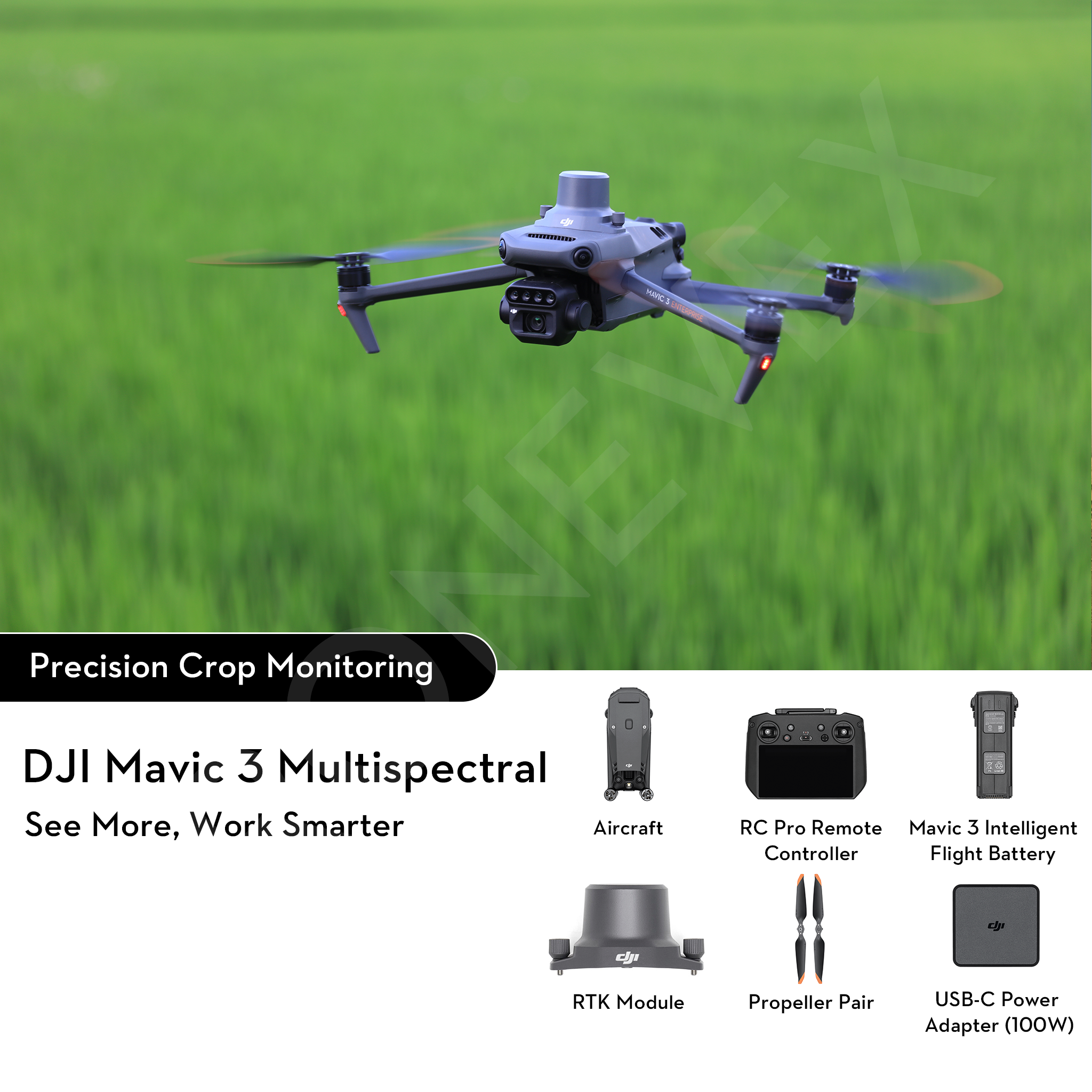

DJI Mavic 3 Multispectral Drone
The DJI Mavic 3 Multispectral Agriculture Drone with Shoulder Bag Kit is an advanced and versatile aerial solution designed specifically for agricultural applications. This comprehensive kit includes the DJI Mavic 3 drone, equipped with a high-resolution multispectral camera, and a convenient shoulder bag for easy transportation. The Mavic 3 Multispectral Agriculture Drone features powerful flight performance, enabling precise and efficient data collection over large agricultural areas. Its multispectral camera captures imagery in multiple spectral bands, providing valuable insights into crop health, irrigation management, and nutrient levels. This data can help farmers make informed decisions and optimize their agricultural practices.
Features of DJI Mavic 3 Multispectral Drone
- Multispectral Imaging Technology: Equipped with advanced multispectral imaging technology, capturing data across various spectral bands for precise crop health assessment, growth monitoring, and optimized agricultural practices (NDVI, NDRE).
- Precision Agriculture Flight Modes: Specialized flight modes automate data collection over farmlands, ensuring consistent coverage and image capture for effective crop monitoring.
- Integrated Data Analysis Tools: Robust tools process multispectral images quickly, delivering actionable insights on crop health, soil conditions, and irrigation needs to improve yield and resource efficiency.
- Real-Time Data Transmission: Immediate data transmission allows for rapid decision-making and timely interventions for better crop management.
- Extended Flight Time: Long flight duration allows for surveying large areas in one operation, enabling regular and detailed monitoring without frequent interruptions.
- GPS Precision Farming: High-precision GPS technology enables accurate mapping, boundary recognition, and optimized treatment planning, reducing overlap and improving efficiency.
- Enhanced Connectivity for Remote Operations: 4G and Wi-Fi connectivity allow for easy remote management, even across vast agricultural zones.
- Weather-Resistant Design: Durable construction ensures reliable performance in various weather conditions, allowing uninterrupted data collection.
- Portable and Easy to Deploy: Compact, foldable design allows for quick deployment and easy transport across multiple locations.
- Global Shutter Mechanism for High-Quality Imaging: Global shutter ensures distortion-free, high-quality multispectral images for accurate analysis and data-driven decisions.
- Obstacle Avoidance System: Intelligent obstacle sensing helps prevent collisions with trees, buildings, and other hazards, enhancing flight safety.
- Automated Data Processing Workflow: Speeds up the transition from data collection to actionable insights, allowing for timely responses that impact crop outcomes.
- Seamless Integration with Farm Management Software: Easily integrates with farm management platforms to streamline data workflows and improve operational efficiency.
- Free DJI Pilot 2: Includes DJI Pilot 2 flight control app for mission planning, real-time monitoring, and integration with DJI’s ecosystem. Some advanced features may require additional licensing.
Efficient and reliable battery life
bursts
Omnidirectional obstacle sensing [1], terrain-follow aerial surveying
The aircraft features multiple wide-FOV vision sensors that accurately detect obstacles in all directions for omnidirectional obstacle avoidance. The terrain-follow aerial surveying can be easily performed in steep-slope landscapes.
Mavic 3M aerial surveying
DJI Terra / DJI SmartFarm Web [6] Mapping
Agricultural Drone Operation
Generate 3D Routes

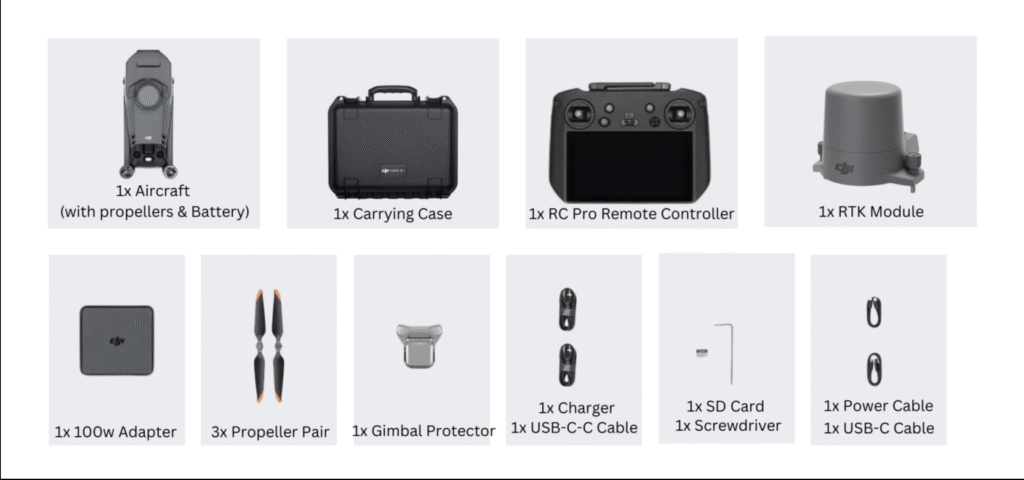

In The Box
Specifications
General
📦 General Specifications
| Feature | Specification |
|---|---|
| Takeoff Weight | Approx. 951 g |
| Dimensions (Folded) | 212 × 96.3 × 90.3 mm (L×W×H) |
| Dimensions (Unfolded) | 347.5 × 283 × 139.6 mm (L×W×H) |
| GNSS | GPS + GLONASS + BeiDou + Galileo |
| Internal Storage | None (microSD required) |
| Protection Rating | IP54 (sensors only) |
✈️ Flight Performance
| Feature | Specification |
|---|---|
| Max Ascent Speed | 6 m/s |
| Max Descent Speed | 6 m/s |
| Max Horizontal Speed | 15 m/s |
| Max Flight Time | Up to 43 mins |
| Max Wind Resistance | 12 m/s |
| Max Transmission Range | 15 km (FCC) |
🌡️ Operating Conditions
| Feature | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C |
📸 Camera & Imaging
| Feature | Specification |
|---|---|
| RGB Camera | 4/3″ CMOS, 20 MP, Mechanical Shutter |
| Multispectral Cameras | 4× 5 MP (G, R, RE, NIR), Global Shutter |
| Multispectral Resolution | 1280 × 1024 per channel |
| Sunlight Sensor | Integrated, real-time radiometric correction |
| Focal Length (Multispectral) | 5.7 mm (FOV: 61.2°) |
📷 Photography & Video
| Feature | Specification |
|---|---|
| Photo Formats | JPEG, DNG (RGB); TIFF (multispectral) |
| Video Resolutions | RGB only: up to 5.1K @ 50fps |
| Multispectral Video | Not supported |
| Shutter Type | Mechanical (RGB), Global (Multispectral) |
🌀 Stabilization & Sensing
| Feature | Specification |
|---|---|
| Gimbal | 3-axis (tilt, roll, pan) |
| Obstacle Sensing | Omnidirectional Vision + Infrared |
📡 Connectivity
| Feature | Specification |
|---|---|
| Transmission System | OcuSync 3.0 Enterprise |
| Controller | DJI RC Pro Enterprise (Built-in screen) |
| RTK Module | Supports Real-Time Kinematic positioning |
🔋 Battery & Charging
| Feature | Specification |
|---|---|
| Battery Model | DJI Mavic 3 Intelligent Flight Battery |
| Capacity | 5000 mAh, 77 Wh |
| Charging Hub | DJI 100W or 65W USB-C Hub |
| Charging Time | Approx. 60–90 minutes (depending on charger) |
FAQs
1. What is the DJI Mavic 3 Multispectral used for in agriculture?
The Mavic 3 Multispectral is designed to help farmers and agronomists monitor crop health, optimize yields, and make informed decisions. It captures both RGB and multispectral data, making it perfect for precision agriculture applications like crop scouting, vegetation analysis, and irrigation planning.
2. What makes this drone different from the regular DJI Mavic 3?
Unlike the standard version, the Mavic 3 Multispectral has a built-in multispectral camera system (including Green, Red, Red Edge, and Near Infrared bands) alongside a regular RGB camera. This allows it to collect data invisible to the human eye—critical for evaluating plant health.
3. How can farmers benefit from multispectral imaging?
Multispectral imaging helps detect crop stress, pests, and disease early. With accurate NDVI and other vegetation indices, farmers can take targeted action, reduce waste, and improve productivity.
4. What is the flight time of the Mavic 3 Multispectral?
The drone offers a flight time of up to 43 minutes, which allows for efficient coverage of large farmland areas in a single session.
5. Can it work with agricultural software platforms?
Yes, it integrates seamlessly with DJI Terra and DJI SmartFarm, as well as other third-party precision ag software for mapping, analysis, and reporting.
6. How accurate is the data captured by this drone?
It supports RTK (Real-Time Kinematic) positioning, enabling centimeter-level accuracy, which is essential for high-precision field mapping and analysis.
7. Is the Mavic 3 Multispectral easy to use for non-technical users?
Absolutely. It’s compact, quick to deploy, and comes with intuitive mission planning software. Even users new to drone tech can fly pre-set routes and collect valuable data with ease.
8. Can it be used for crop spraying or just data collection?
The Mavic 3 Multispectral is designed specifically for data collection, not spraying. However, it can guide spraying drones more efficiently by identifying problem areas in the field.
9. What is the transmission range of this drone?
It features OcuSync 3.0 transmission with a range of up to 15 km (FCC), ensuring stable, real-time image and data transmission even across large farmlands.
10. Is it safe to fly in varying weather conditions?
While it’s durable and reliable, it’s best to avoid flying in heavy rain or strong winds. For optimal results, fly under clear weather to ensure accurate data capture.
