Matrice Series

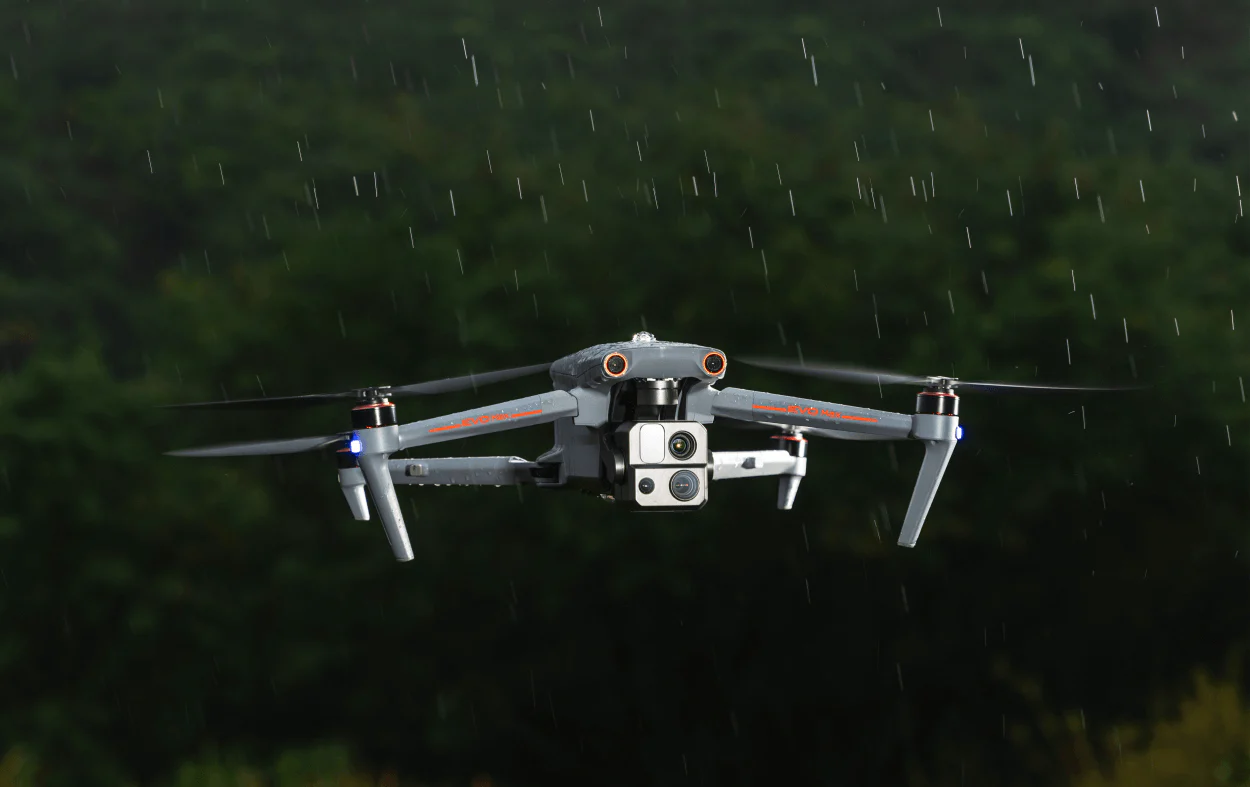

DJI Matrice 4 Series, is a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes the Matrice 4T and Matrice 4E, each equipped with advanced features such as smart detection and measurement with a laser range finder. Flight operations are now safer, more reliable, and powered by AI, with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. A new era in intelligent aerial operations begins now.
Features of Matrice 4E
- Wide-Angle Camera: 1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm.
- Medium Tele Camera: 1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm.
- Tele Camera: 1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm.
- Laser Range Finder: Measurement Range: 1800 m (1 Hz); Range Accuracy: ±(0.2 + 0.0015 × D).
- NIR Auxiliary Light: FOV: 6°, Illumination Distance: 100 m.
- Intelligent Recognition: Built-in AI identifies vehicles, vessels, and subjects during search and rescue or routine flights with Cruise, FlyTo, Smart Track, and POI functions.
- Night Scene Mode: Full-Color night vision supports three modes with two levels of noise reduction, IR Cut Filter, and NIR auxiliary light for enhanced night operations.
- Smart Low-Light Photo: Larger apertures and intelligent low-light capabilities improve performance in dusk and nighttime operations.
- Low-Light Fisheye Omnidirectional Sensing: Six HD low-light fisheye vision sensors enable advanced positioning and obstacle avoidance even in low-light urban environments.
- Excellent for Low-Light Environments: Medium tele camera identifies screws from 10 meters; tele-camera captures signs up to 250 meters with enhanced clarity.
- Enhanced Medium Telephoto: Medium telecamera detects screws, cracks, and reads instrument data from 10 meters during inspections.
- Super Resolution Telephoto: Tele camera captures incredible details at 48MP from signs up to 250 meters away.
- Foreground Stabilization for Telephoto Imagery: Upgraded stabilization keeps foreground subjects stable and clear at 10x zoom or higher.
- Electronic Dehazing: Supports Low, Medium, and High modes to improve imaging clarity in smog or humidity.
- Precision Mapping:
- Rapid 0.5-Second Interval Shooting: 5-directional Oblique Capture, 3-directional Ortho Capture, and Smart 3D Capture supported.
- 5-Directional Oblique Capture: Gimbal rotates to capture multiple angles in one flight, improving small drone mapping efficiency.
- 3-Directional Ortho Capture: Lateral capturing reduces overlap, allowing mapping of 2.8 km² per flight without elevation optimization.
- Smart 3D Capture: Generates rough models on remote controller, creates precise routes for detailed structure measurements.
- Distortion Correction: Distortion Correction 2.0 with less than 2-pixel residual distortion improves reconstruction accuracy.
- Auto-Generated Surveying Operation Report: DJI Pilot 2 automatically generates a survey report post-operation, showing photo points, RTK status, and photo parameters.
- Fusion Positioning, Safe Return-to-Home: GNSS+Vision Integrated Navigation enables return-to-home even without GNSS signals. Supports rapid takeoff in 15 seconds.
- Intelligent Guidance: Terrain elevation maps, detailed map preloading, 5-directional vision assist, and downward vision ensure obstacle avoidance and flight safety.
- O4 Enterprise Video Transmission:
- 8-antenna system achieves up to 25 km transmission range.
- Download bandwidth of 20MB/s doubles Mavic 3 Enterprise Series performance.
- DJI RC Plus 2 Enterprise Remote Controller:
- High-brightness screen visible in sunlight.
- IP54 rating, operating temperature: -20°C to 50°C.
- Supports O4 Enterprise and 4G hybrid transmission for stable video in urban/mountain areas.
- DJI Cellular Dongle 2 Support: Enables 4G image transmission combined with aircraft antennas for enhanced signal stability.

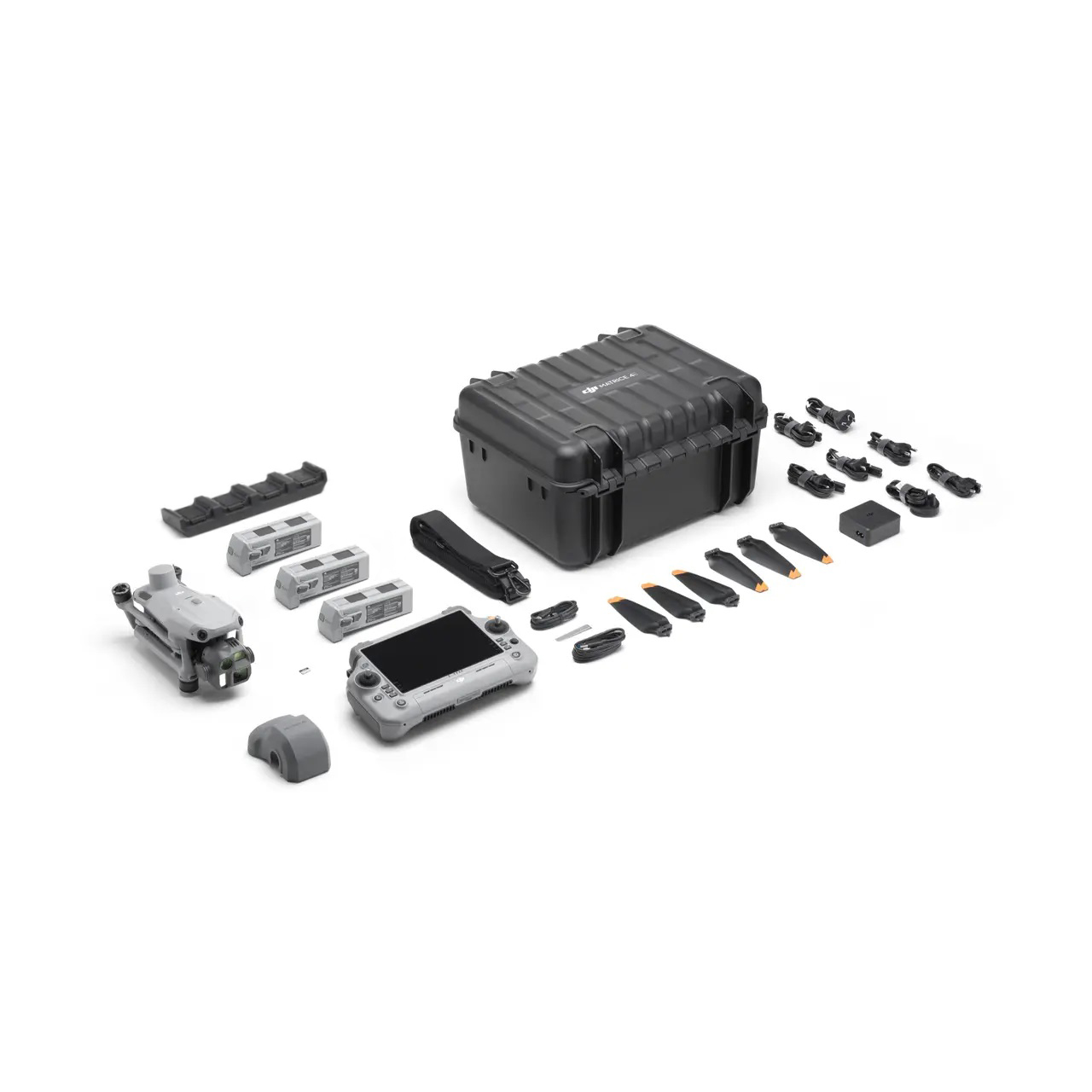

In the Box
DJI Matrice 4E × 1
DJI RC Plus 2 Enterprise× 1
DJI Matrice 4 Series Battery× 3
DJI 100W USB-C Power Adapter× 1
DJI Matrice 4E Gimbal Protector× 1
DJI Matrice 4 Series Propellers × 3
USB-A to USB-C Data Cable × 1
100W Power Adaptor AC Cable × 1
USB-C to USB-C Data Cable × 1
DJI Matrice 4 Series Storage Case × 1
DJI Matrice 4 Series Storage Case Shoulder Strap × 1
Specifications
Specifications
📦 General Specifications
| Feature | Specification |
|---|---|
| Takeoff Weight | Approx. 1063 g |
| Folded Dimensions | 124.8 × 106.6 × 257.6 mm |
| Unfolded Dimensions | Not officially stated |
| Max Takeoff Altitude | 6000 m |
| GNSS | GPS + Galileo + BeiDou |
| Internal Storage | 512 GB SSD (Approx. 460 GB usable) |
✈️ Flight Performance
| Feature | Specification |
|---|---|
| Max Ascent Speed | 10 m/s |
| Max Descent Speed | 10 m/s |
| Max Horizontal Speed | 27 m/s |
| Max Flight Time | Up to 51 mins |
| Max Wind Resistance | 12 m/s |
| Max Transmission Range | 30 km (FCC) |
🌡️ Operating Conditions
| Feature | Specification |
|---|---|
| Operating Temperature | -10 °C to 40 °C |
📸 Camera & Imaging
| Feature | Specification |
|---|---|
| Wide Camera | 4/3″ CMOS, 100 MP, f/2.0–f/11 |
| Medium Telephoto | 1/1.3″ CMOS, 48 MP, f/2.8, 70 mm |
| Long Telephoto | 1/1.5″ CMOS, 50 MP, f/2.8, 168 mm |
| Zoom Capability | 3x optical / 28x hybrid |
📷 Photography & Video
| Feature | Specification |
|---|---|
| Video Resolutions | 6K @ 60fps (wide), 4K @ 60fps (telephotos) |
| Photo Formats | JPEG, DNG (RAW) |
| Video Formats | MP4 (H.264/H.265), All‑I 10-bit 4:2:2 |
| Max Bitrate | Up to 1200 Mbps (wide), 180 Mbps (tele) |
| Color Profiles | D-Log M, HLG |
🌀 Stabilization & Sensing
| Feature | Specification |
|---|---|
| Gimbal | Infinity 3-axis, 360° rotation, 70° tilt |
| Obstacle Sensing | Omnidirectional + LiDAR + Night Vision |
📡 Connectivity
| Feature | Specification |
|---|---|
| Transmission System | O4+ 10-bit HDR |
| Controller Display | 7″ mini-LED, 2000-nit (DJI RC Pro 2) |
🔋 Battery & Charging
| Feature | Specification |
|---|---|
| Included Batteries | 3× Intelligent Flight Batteries |
| Charging Hub | Parallel hub with power bank function |
| Charger | 240W fast charger |
| ND Filters | ND4, ND8, ND16, ND32, ND64 |
FAQs
What is the DJI Matrice 4E used for?
Primarily, the DJI Matrice 4E is designed for professional applications such as mapping, surveying, inspections, and search and rescue operations.
What is the camera quality of the Matrice 4E?
Notably, it features a 4/3-inch CMOS sensor with 20 MP resolution and 56x hybrid zoom for clear, high-quality images.
How long can the Matrice 4E fly on a single charge?
Under optimal conditions, it can fly for up to 49 minutes, depending on factors like wind and payload.
Can the drone handle harsh weather?
Yes, it can; in fact, it operates reliably in temperatures from -10°C to 40°C and is highly wind-resistant.
How accurate is the drone’s navigation system?
Thanks to its advanced GNSS and RTK integration, it offers highly accurate positioning and navigation.
What kind of payloads can it carry?
Moreover, the Matrice 4E supports multiple payloads, making it flexible for a variety of mission types.
How fast can it fly?
Impressively, it can reach speeds of up to 21 meters per second (approximately 75 km/h).
Does it have smart flying features?
Absolutely, it includes intelligent flight modes like waypoints, terrain follow, Cruise, Smart Track, POI, and more.
Can the drone recognize objects automatically?
Yes, in addition, it is equipped with AI-powered recognition to identify vehicles, vessels, and people during flights.
