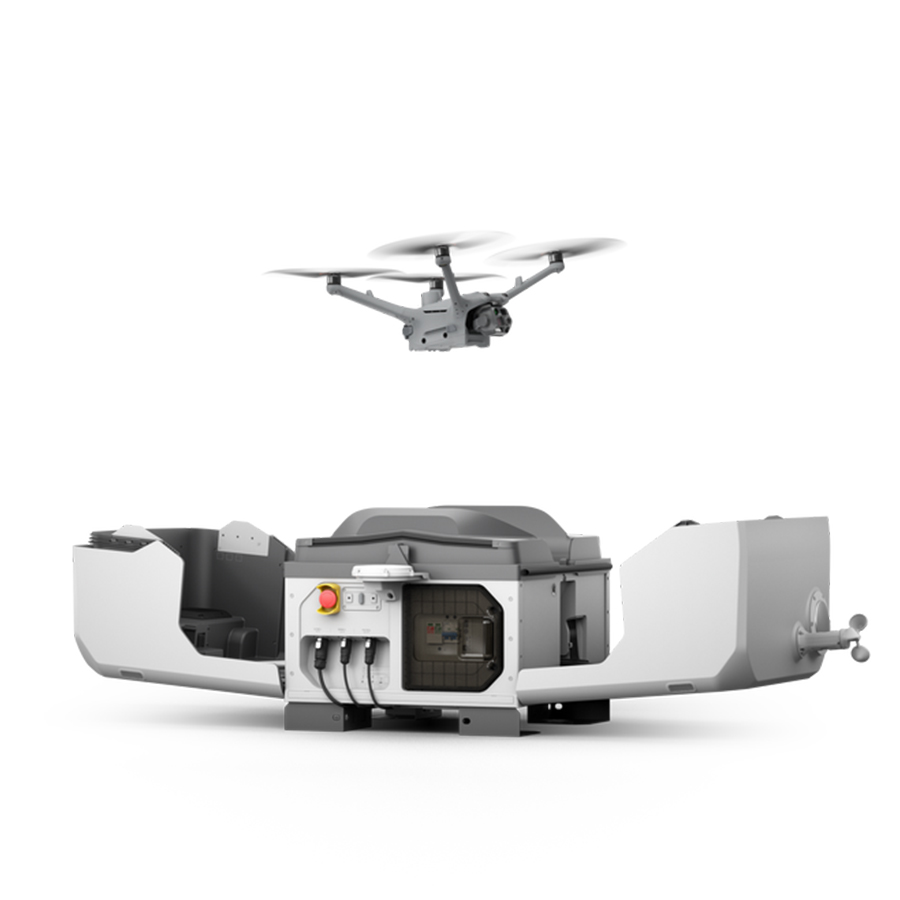

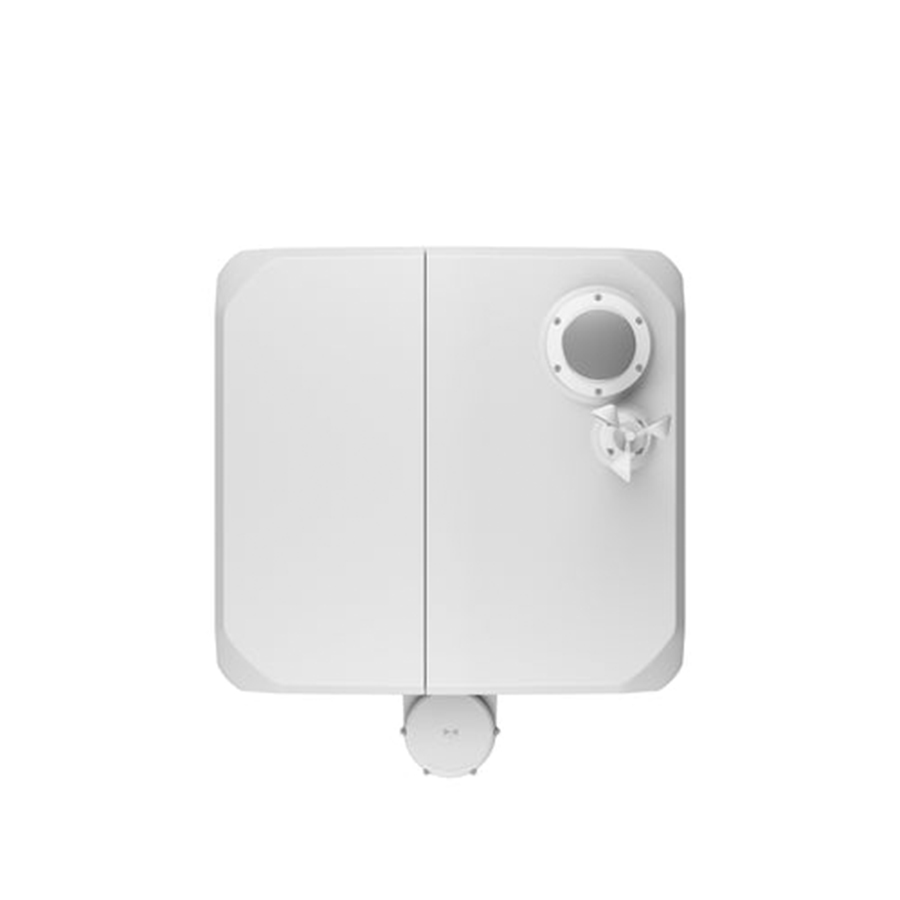

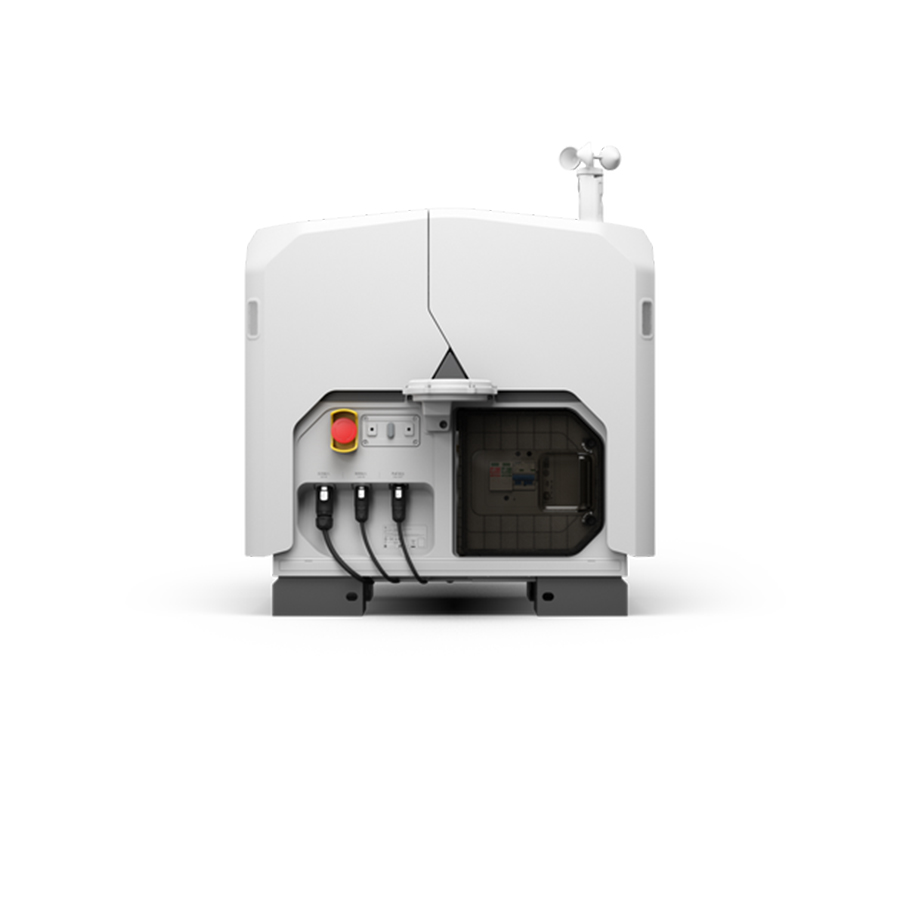

DJI Dock 3 – Next-Level Autonomous Drone Operations
The DJI Dock 3 redefines remote drone deployment with powerful automation, faster turnaround times, and seamless integration. Purpose-built for the DJI Matrice 3D/3TD series, this robust docking station enables fully automated takeoff, landing, battery charging, and mission scheduling—all with minimal human intervention. Compact and lighter than its predecessor, the Dock 3 boasts a 50-minute maximum flight time, 10 km operation radius, and fully charged turnaround in just 32 minutes, ensuring unmatched efficiency.
Designed for real-time environmental adaptability, it features IP55 weather resistance, active climate control, and a built-in RTK module for centimeter-level positioning accuracy. With Cloud API and DJI FlightHub 2 compatibility, DJI Dock 3 is the smart backbone for scalable aerial operations—perfect for site inspections, emergency response, security patrols, and infrastructure monitoring
Environmental Resilience: Built to Endure and Deliver
Heat Resistant
Engineered for high-temperature endurance, the DJI Dock 3 performs and recharges reliably even in scorching conditions up to 50°C (122°F), guaranteeing smooth and uninterrupted operations.
50° C
Highest Operating Temperature
Cold Resistant
Execute essential operations with confidence even in extreme cold, as DJI Dock 3 remains dependable in temperatures dropping below –20°C (–4°F). With preheating, it maintains stable performance in environments as cold as –30°C (–22°F).
-30 ° C
Lowest Operating Temperature
Wind Resistance
Both the Matrice 4D and 4TD deliver exceptional flight stability, effortlessly handling wind speeds up to 12 m/s. They support secure takeoffs, precise landings, and extended airtime of up to 32 minutes.
12m/s
Max Wind Speed Resistance
Rugged and Dependable
The Dock 3 features a protective design that encloses its electronic components, shielding internal systems from external elements and enabling smooth, uninterrupted operation in challenging environments.
IP56
DJI Dock 3
IP55
DJI Matrice 4D/4TD
Low-Noise and Anti-Ice Propellers
Equipped with low-noise, anti-ice propellers as standard, the Matrice 4D and 4TD ensure stable flight even in freezing rain. Their quiet design minimizes operational noise, enhancing performance in sensitive environments.
High-Performance Drones: Precision and Reliability Combined
Water and Dust-Resistant Design:
The Matrice 4D and 4TD drones don’t back down from tough environments. They feature IP-rated protection to resist water and dust. When paired with the Dock 3, they deliver continuous, high-reliability performance, rain or shine.
Extended Flight Time:
Because mission length matters, both drones deliver extended airtime. Paired with the DJI RC Plus 2 Enterprise controller, operators gain precision control for both automated and manual flights.
Advanced Cameras and Sensors:
For visual tasks, the Matrice 4D includes wide-angle, telephoto, medium telephoto cameras, and a Laser Range Finder—perfect for mapping and structural analysis. Meanwhile, the Matrice 4TD steps in with a thermal infrared camera and NIR auxiliary light, ideal for emergency services, safety monitoring, and inspection workflows.
Smarter Missions with DJI FlightHub 2
Automated Flight Routes:
With DJI FlightHub 2, you design automated flight paths tailored to inspection, safety, and surveillance. Drones autonomously detect critical elements—vehicles, vessels, temperature shifts—and collect data in real time, removing human error from the equation.
Real-Time Notifications:
As drones work, FlightHub 2 pushes live alerts to your dashboard. This immediate feedback loop ensures fast response during urgent scenarios, especially in time-sensitive fields like emergency response.
Enterprise-Level Security and Compliance
Custom Permission Management:
Unlike basic systems, FlightHub 2 lets you define team member permissions, keeping your workflow tight and your data under control.
ISO 27001 Certification:
Moreover, DJI FlightHub 2 meets ISO/IEC 27001 standards. All data routes through Amazon Web Services (AWS), ensuring compliance, encryption, and operational security. You maintain full control of your data, from capture to cloud.
4G Dongle Private Deployment:
The DJI Cellular Dongle 2 provides 4G connectivity, enhancing data transmission and command stability. With this upgrade, you stream video without lag and maintain full flight control, even in remote deployments.
Mobile Vehicle-Mounted Deployment
DJI Dock 3 is the first in its series to support mobile, vehicle-mounted deployment. Purpose-built for on-the-go use, its structure, components, and internal air conditioning have been rigorously tested for vehicle vibrations. It also features advanced capabilities like horizontal calibration and cloud-based location calibration. For emergency missions or long-range inspections, pairing it with the DJI Dock 3 Vehicle-Mounted Gimbal Mount offers a practical solution where fixed installations aren’t feasible.
Fixed-Mounted Deployment
The new D-RTK 3 Relay Fixed Deployment Version delivers enhanced anti-interference capabilities for both video transmission and satellite signal acquisition. When installed at elevated positions, it effectively overcomes obstructions that impact RTK accuracy and signal quality, extending the maximum transmission range up to 25 km. This advanced functionality enables more flexible and strategic placement of DJI Dock 3 based on real-world operational requirements.
Near High-Rise Buildings
Mounting the D-RTK 3 Relay on rooftops greatly improves signal reception, enabling DJI Dock 3 to be effectively deployed near high-rise structures or alongside substation walls without compromising transmission quality.
Near Communication Towers
Placing the D-RTK 3 Relay on a nearby communication tower can substantially boost signal strength, ensuring reliable Dock 3 operations. This setup enables safe takeoffs and landings even in areas affected by interference from the tower itself.
High-Performance Drones
The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.
Specifications
Specifications Comparison for different Models
| Parameter | Specification |
|---|---|
| Weight | 55 kg (without aircraft) |
| Size (Open Dock) | 1760 × 745 × 485 mm |
| Size (Dock Closed) | 640 × 745 × 770 mm |
| Input Voltage | 100 ~ 240 V (AC), 50/60 Hz |
| Input Power | Max 800 W |
| Operating Temperature | –30°C to 50°C (–22°F to 122°F) |
| Max Operating Altitude | 4500 m |
| Max Operating Radius | 10 km |
| Charging Time | 27 minutes |
| Battery Cycles | 400 times |
| Battery Backup | More than 4 hours |
| Development | Cloud API + Peripheral Calculation |
| Applications | DJI Enterprise App (Android) |
| Cloud Platform | FlightHub 2, FlightHub 2 On-Premises Version, FlightHub 2 FlightHub Sync, DJI Cloud API |
| Dock Security Camera (External) | Resolution: 1920 × 1080FOV: 151°Auxiliary Light: White Light |
| Dock Security Camera (Internal) | Resolution: 1920 × 1080FOV: 151°Auxiliary Light: White Light |
FAQs
FAQs for DJI Dock 3
1. What drones are compatible with Dock 3?
The new Dock 3 is designed for compatibility with the Matrice 4D and Matrice 4TD models. These high-performance drones are ideal for seamless integration with the DJI Dock 3 system.
2. How does Dock 3 handle power outages?
The new Dock 3 is equipped with a backup battery that ensures continued operation for more than 4 hours during unexpected power outages, allowing uninterrupted drone operations in critical situations.
3. What are the dimensions and weight of Dock 3 compared to its predecessor?
- DJI Dock 3 weighs 55 kg (without the aircraft) and has dimensions of 1760 x 745 x 485 mm (open) and 640 x 745 x 770 mm (closed).
- Compared to DJI Dock 2, it is designed to be more compact, with better portability and streamlined deployment.
4. How long does it take for Dock 3 to charge a drone from 20% to 90%?
DJI Dock 3 can charge drones to 32 minutes of flight time, from 20% to 90% of the battery capacity, ensuring quick turnarounds for continuous missions.
5. Can Dock 3 operate in harsh weather conditions?
Yes, DJI Dock 3 is built with an IP55 rating for dust and water resistance, which allows it to operate reliably even in challenging environmental conditions such as rain, snow, and dust storms.
6. What automated functions does Dock 3 support?
DJI Dock 3 supports automated charging, deployment, and environmental monitoring through internal and external cameras. Additionally, it integrates with DJI FlightHub 2, allowing real-time data analysis and automatic flight route adjustments. Notifications for mission failures or emergencies are also supported.
7. How does Dock 3 improve site selection for drone operations?
The new Dock 3 features vision sensors and advanced software tools that allow for quick GNSS signal strength assessments, reducing the time needed for site selection. This process is much faster than traditional methods, cutting site assessment time to minutes.
8. What is the maintenance schedule for Dock 3?
DJI Dock 3 requires minimal maintenance, typically only once every six months. This efficient schedule helps reduce downtime and lowers operational costs, ensuring continuous and reliable service.
9. How does Dock 3 enhance operational efficiency?
The new Dock 3 boosts operational efficiency with quick drone charging, dual RTK antennas for precise location without waiting for data convergence, and vehicle-mounted deployment for rapid relocation during urgent operations. These features streamline workflows and minimize delays.
10. What type of notifications does Dock 3 send during emergencies or task failures?
The new Dock 3 sends real-time SMS and email notifications in case of mission failures, emergencies, or critical issues. This allows operators to react swiftly and troubleshoot problems promptly, ensuring mission continuity and reducing downtime.
